Usage: Fx Fy Fz Force Measurement Theory: Resistance Sensor
Output: Analog Sensor Capacity: 10N 20N 30N 50N 100N
Material: Aluminum

Multi-axis Sensor 100N 50N 20N 10N Fx Fy Fz 3-axis Force Measurement Transducer

Miniature 3-axis sensor FNZ is made of aluminum based on strain gauge technology offering 0-10N / 0-20N / 0-50N / 0-100N four measuring ranges for all three axes,each axis is capable of measuring force in both tension and compression direction. Multi-axis Load Cell FNZ utilizes independent wheatstone full bridge for each axis to deliver mV/V output which proportional to the applied force and requires no mathematical manipulation,3-channel signal amplifier LC3A can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA output. Taking FNZ-100N and LC3A(-10-10V)-24V for example,the load-voltage relationship will be 0-100N load in Fx+/Fy+/Fz+ direction VS 0~10V output, 0-100N load in Fx-/Fy-/Fz- direction VS 0~(-10V) output.Typical applications for this type of transducer are for example friction force measurement,force control in robotics,force simulators, force monitoring in handing devices,industrial test benches,etc..

3D force sensor 100N 50N 20N 10N

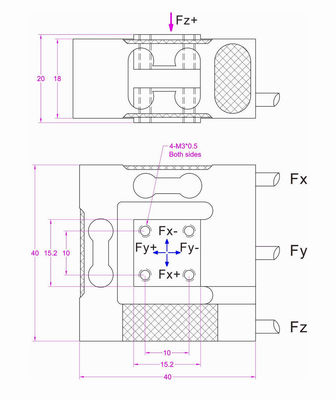

Dimensions

3D load cell 10kg 5kg 2kg 1kg

Specifications

Capacity

10N / 1kg / 2.2lb

20N / 2kg / 4.4 lb

50N / 5kg / 11lb

100N / 10kg / 22lb

Rated output 1.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Operating temperature -10...+50oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable

Ø3*2000mm 4-core

(For each axis)

Wiring code

Red--Exc+ Green--Exc-

Yellown--Sig+ White--Sig-
