| Usage: | Weight Measurement/force Measurement | Type: | Miniature Single Point Load Cell |
|---|---|---|---|
| Output: | Analog | Capacity: | 2kg/20N/4.4lbf |
| Theory: | Strain Gauge Sensor |
Miniature Load Sensor 2kg Small Size Weight Measurement Transducer

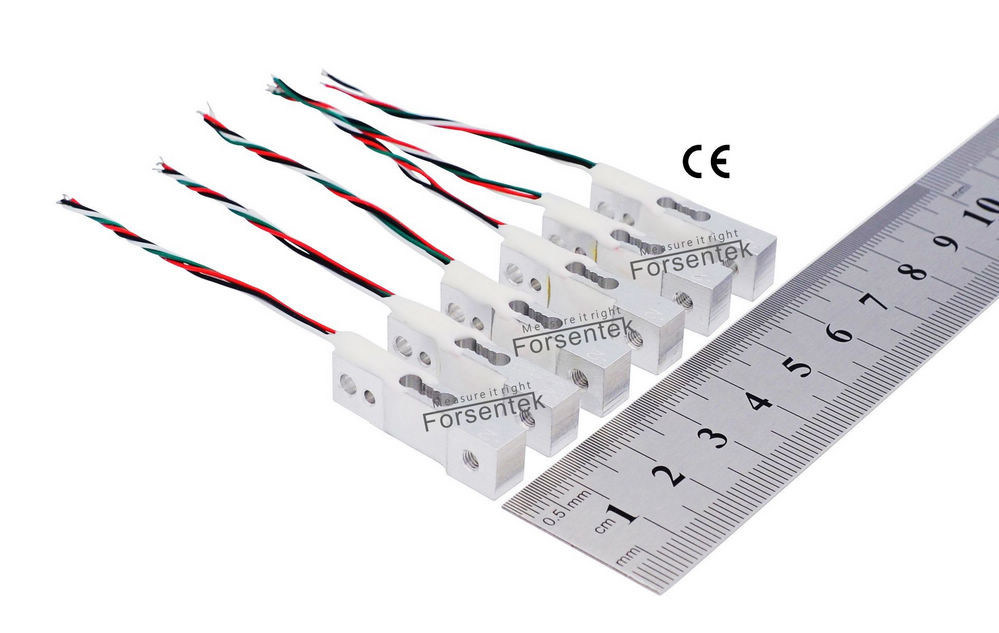

Micro Load Cell FMZT offers 2kg rated capacity,model FMZT utilizes 1000 ohms high resistance strain gauges,which is more energy-efficient compared to commonly used 350 ohms strain gauges. Lightweight design with only 3.3 grams self weight, micro load cell FMZT is suitable for high accuracy weight measurement applications with restricted space and tight budget.
Dimensions
Specifications
| Capacity | 2kg / 20N / 4.4 lbf |
| Rated output | 0.7 mV/V |
| Excitation | 3-6V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(2min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+25oC |
| Operating temperature | -10...+40oC |
| Temperature shift zero | ±0.2% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Aluminum alloy |
| Cable |
AWG32*50mm |
| Wiring code |
Red--Excitation+ Black--Excitation- |
A Load Sensor is a transducer that converts mechanical load into electrical signal which is proportional to the load being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell which is normally within 0-5mV for model FMZT. Overloading is the most common cause of loadcell failure, a loadcell is just like a spring in certain aspects, which will be damaged if overstretched or overloaded. A machanical stop(refer to below picture) can be used to protect the sensor from excessive deformation. The deformation distance can be determined by loading the sensor with rated capacity, then adjust the meachnical stop to reach the bottom of the transducer. In most cases, the load transducer will be used to measure load at 40-80% of the full scale, thus the deformation distance can be adjusted using reference load which is a bit higher than the maximum target load to be measured instead of the rated capacity.
Miniature Load Cell Transducer 2kg Micro Weight Sensor 4.4 lbf
