Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN

Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN

Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN
Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN

Large Image :  Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FFG
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3050pcs/month
Detailed Product Description
Usage: Force Measurement Type: Miniature Tension Compression Load Cell
Output: Analog Sensor Capacity: 20N 50N 100N 200N 500N 1000N 2000N
Force Direction: Tension And Compression Connection: Flange To Flange

Flange-to-Flange Tension And Compression Force Sensor 20N 50N 100N 200N 500N 1kN 2kN

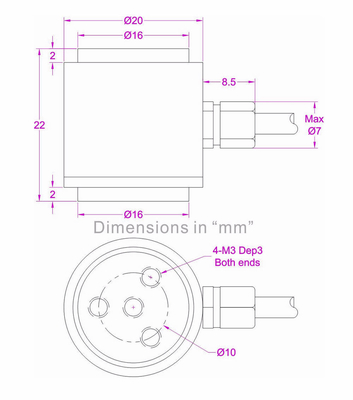

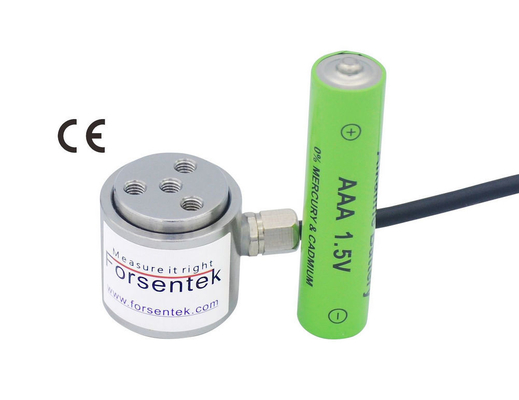

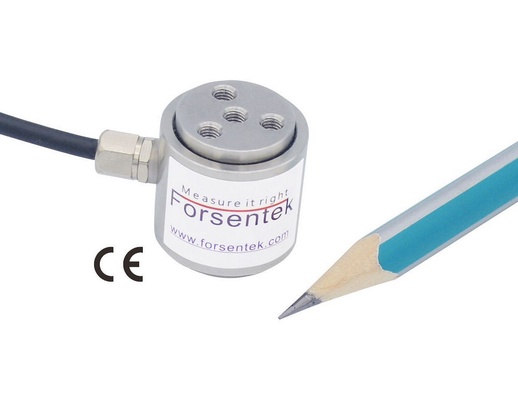

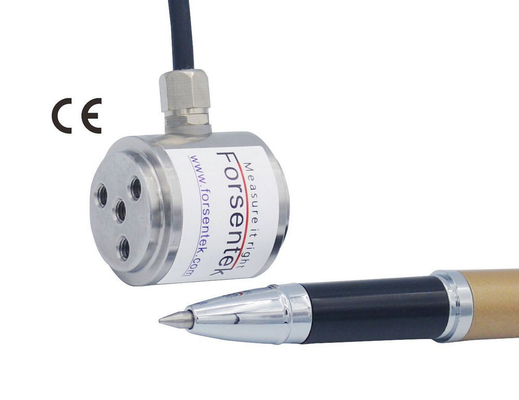

Miniature Flange Type Tension Compression Load Cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output.Miniature force sensor FFG offers 0-20N / 0-50N / 0-100N / 0-200N / 0-500N / 0-1kN / 0-2kN seven rated capacities to choose from, model FFG can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Miniature Force Sensor FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

tension and compression load cell 5kg 10kg 20kgFlange type load cell tension compression

Ordering code Measurement Range Force direction
FFG-20N 0-20N / 0-2kgf Tension/compression
FFG-50N 0-50N / 0-5kgf
FFG-100N 0-100N / 0-10kgf
FFG-200N 0-200N / 0-20kgf
FFG-500N 0-500N / 0-50kgf
FFG-1kN 0-1000N / 0-100kgf
FFG-2kN 0-2000N / 0-200kgf

Specifications

Capacity

4.4lb / 10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf

2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg

20N / 50N / 100N / 200N / 500N / 1kN / 2kN

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø3*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-30mV(-30mV...+30mV for bidirectional load cell).
Example one: Flange Load Cell FFG-1kN with 2.0mV/V sensitivity powered by 3.3V DC,the output range is -6.6mV...+6.6mV(Tension and compression).
Example two: Tension Compression Load Cell FFG-2kN with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV(Tension and compression).

Tension And Compression Force Measurement

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example one: Tension Compression Sensor FFG-500N working with -5-5V amplifier,the Force-Voltage relationship will be 0-500N compression load VS 0-5V output, 0-500N tension load VS 0-(-5V) output,when you get 3V output,it means the current load is 300N compressive force,when you get -2V output,it means the current load is 200N tensile force,and so on.

Example two: Cylindrical Tension and Compression Load Cell FFG-500N working with amplifier FSC(4-12-20mA)-24V,the Force-Current relationship will be 0-500N compression force VS 12-20mA output, 0-500N tension force VS 12-4mA, which is linear regardless of the measurement error, 12mA output corresponds to “0” load, 12.8mA output corresponds to 50N compressive load, 8mA output corresponds to 250N tensile load, and so on.

Flange-to-Flange Tension And Compression Load Cell 2kg 5kg 10kg 20kg 50kg 100kg 200kg

tension and compression load cell 50kg 100kg 200kg

Click here to download datasheet
