Product Details:
Payment & Shipping Terms:
|
| Usage: | 3 Axis Force Measurement | Type: | Multi-axis Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Load Direction: | Fx/Fy/Fz |
| Capacity: | 10N 20N 50N 100N |

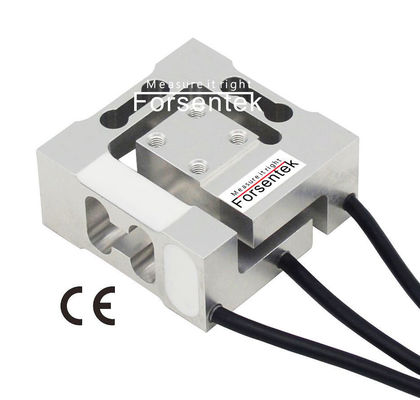

Miniature Triaxial Load Cell 100N 50N 20N 10N Multi-axis Force Sensor
Miniature Tri-axial Load Cell FNZ is made of aluminum based on strain gauge technology offering 10N / 20N / 50N / 100N four measuring ranges for all three axes,each axis is capable of measuring force in both tension and compression direction. Multi-axis force sensor FNZ utilizes independent wheatstone full bridge for each axis to deliver mV/V output which proportional to the applied force and requires no mathematical manipulation,3-channel signal amplifier LC3A can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA output. Taking FNZ-100N and LC3A(-10-10V)-24V for example,the load-voltage relationship will be 0-100N load in Fx+/Fy+/Fz+ direction VS 0~10V output, 0-100N load in Fx-/Fy-/Fz- direction VS 0~(-10V) output.Typical applications for this type of transducer are for example friction force measurement,force control in robotics,force simulators, force monitoring in handing devices,industrial test benches,etc..
Dimensions
Specifications
| Capacity |
10N / 1kg / 2.2lb 20N / 2kg / 4.4 lb 50N / 5kg / 11lb 100N / 10kg / 22 lb |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(2min) | ±0.2% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Operating temperature | -10...+50oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable |
Ø3*2000mm 4-core for each axis |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Miniature Triaxial Load Cell 100N 50N 20N 10N Multi-axis Force Sensor
