1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator

1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator

1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator
1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator 1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator 1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator 1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator

Large Image :  1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCMA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3300pcs/month
Detailed Product Description
Usage: Force Measurement/Weighing Type: Universal Pancake Load Cell
Output: Analog Sensor Capacity: 30kg 50kg 100kg 200kg 300kg 500kg 1000kg
Threaded Hole: M16

1000kg 500kg 300kg 200kg 100kg 50kg Pancake Load Cell With Digital Indicator

Universal Pancake Load Cell FCMA is made of high stiffness alloy steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force.Pancake load cell FCMA offers 300N / 500N / 1000N / 2000N / 3000N / 5000N / 10kN seven different measuring ranges with maximum 0.1% non-linearity of the rated output to choose from intended for both static and dynamic force measurement, low profile load cell FCMA can be used for both tension and compression measurement,low profile structure makes it also suitable for in-line force monitoring.Model FCMA is designed with a M16x1.5 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading, which makes spoke type load cells very adaptable to various cases,you may find pancake type load cell FCMA applicable for force measurement in injection-molding machines,press machines and material testing equipment,weight measurement for tanks,vessels and hoppers, and so on.

Pancake Load Cell 50 kg 100 kg 200 kg 300 kg 500 kg

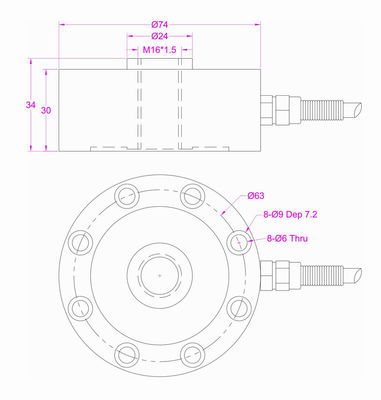

Dimensions

Pancake Load Cell 10kN 5kN 3kN 2kN 1kN 500N
Specifications

Capacity

30kg / 300N / 66 lbf

50kg / 500N / 110lbf

100kg / 1kN / 220lb

200kg / 2kN / 440 lb

300kg / 3kN / 660 lbf

500kg / 5kN / 1.1klb

1000kg / 10kN / 2.2k lbf

Rated output 2.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(10min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Alloy steel
Cable Ø5*2000mm 4-core shielded
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-



A load cell sensor is a transducer that converts a load or force acting on it into electronic signal which is proportional to the load(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Pancake load cell FCMA outputs millivolt signal ranging 0-30mV,and signal amplification may be required for most applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards.Weight indicator can be used to display the measured value,load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.

10kN 5kN 3kN 2kN 1kN 500N Pancake Load Cell With Digital Indicator
Pancake Load Cell With Digital Readout

Click here to download datasheet
