| Usage: | Measure Compression Force | Type: | Compression Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Material: | Alloy Steel |
| Range: | 0-100 Ton | Threaded Hole: | M16/M32/M40/M60 |
Compression load sensor 5kN 10kN 20kN 30kN 50kN force measurement transducer
Low profile compression type load cell FCM is made of high stiffness alloy steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force.Pancake load cell FCM offers 5kN / 10kN / 20kN / 30kN / 50kN / 70kN / 100kN / 200kN / 250kN / 300kN / 500kN / 600kN / 1000kN thirteen rated capacities to choose from.Force transducer FCM is suitable for both static and dynamic force measurement in tension and compression direction.Low profile structure makes it also suitable for in-line force monitoring.Pancake loadcell FCM is designed with a metric threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading,this makes spoke type load cells very adaptable to various cases,you may find pancake type load cell FCM applicable for force measurement in injection-molding machines,press machines and material testing equipment,weight measurement for tanks,vessels and hoppers, and so on.
Dimensions
Specifications
| Rated capacity |
0.5t / 5kN / 1.1 klb 1t / 10kN / 2.2klb 2t / 20kN/ 4.4k lb 3t / 30kN/ 6.6 klb 5t / 50kN/ 11klb 7t / 70kN/ 15 klb 10t/ 100kN/ 22 klb 20t/ 200kN/ 44klb 25t/ 250kN/ 55k lbf 30t/ 300kN/ 66k lb 50t/ 500kN/ 110k lbf 60t/ 600kN/ 132k lb 100t/ 1000kN/ 220k lbf |
| Rated output | 2.0±10%mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% of R.O. |
| Nonlinearity | ±0.05% of R.O. |
| Hysteresis | ±0.05% of R.O. |
| Nonrepeatability | ±0.03% of R.O. |
| Creep(30min) | ±0.03% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Alloy steel |
| Cable | Ø5*3000mm 4-core |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

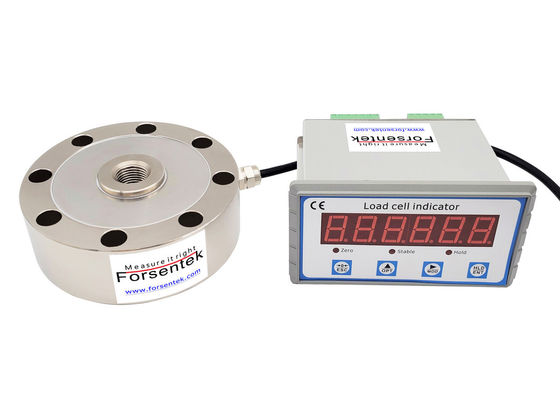

A load cell sensor is a transducer that converts a load or force acting on it into electronic signal which is proportional to the load(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Pancake load cell FCM outputs millivolt signal ranging 0-30mV,and signal amplification may be required for most applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards.Weight indicator can be used to display the measured value,load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
