| Usage: | Compression Force Sensor | Type: | Pancake Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Material: | Alloy Steel |
| Capacity: | 30kg 50kg 100kg 200kg 300kg 500kg 1000kg | Threaded Hole: | M16 |
Compression force meter 10kN 5kN 3kN 2kN 1kN 500N compression force measurement

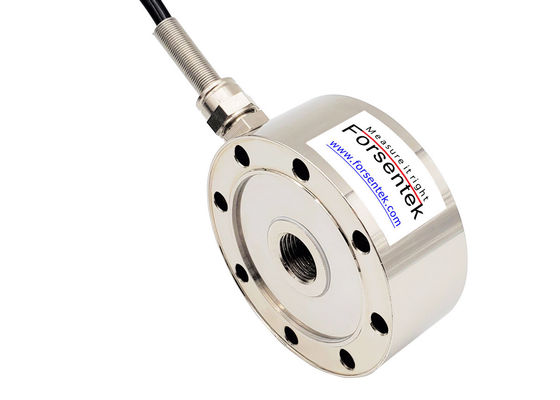

Low profile compression force meter FCMA is made of high stiffness alloy steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force.Pancake load cell FCMA offers 30kg / 50kg / 100kg / 200kg / 300kg / 500kg / 1000kg seven different measuring ranges with maximum 0.1% non-linearity of the rated output to choose from intended for both static and dynamic force measurement,low profile load cell FCMA can be used for both tension and compression measurement,low profile structure makes it also suitable for in-line force monitoring.Model FCMA is designed with a M16x1.5 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading,this makes spoke type load cells very adaptable to various cases,you may find pancake type load cell FCMA applicable for force measurement in injection-molding machines,press machines and material testing equipment,weight measurement for tanks,vessels and hoppers, and so on.
Specifications
| Capacity | 30kg / 300N / 66 lbf 50kg / 500N / 110lbf 100kg / 1kN / 220lb 200kg / 2kN / 440 lb 300kg / 3kN / 660 lbf 500kg / 5kN / 1.1k lb 1000kg / 10kN / 2.2klbf |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% F.S. |
| Hysteresis | ±0.1% F.S. |
| Nonrepeatability | ±0.05% F.S. |
| Creep(5min) | ±0.05% F.S. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 750±50 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Alloy steel |
| Cable | Ø5*2000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- |
