Triaxial load cell 500kg 300kg 200kg 100kg 50kg multi-component sensor

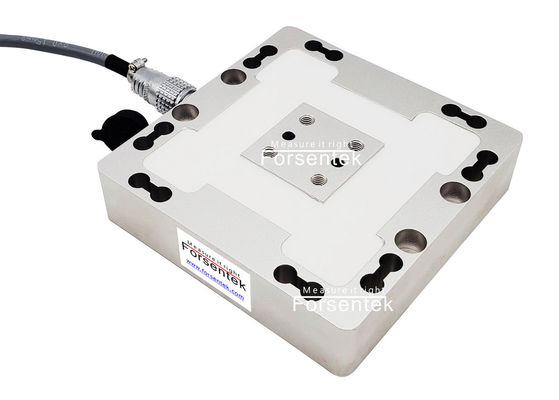

Low profile 3-axis force sensor F3F is designed to measure force in Fx/Fy/Fz at the same time. Triaxial force sensor F3F offers 200N / 300N / 500N / 1kN / 2kN / 3kN / 5kN rated capacities for each axis to choose from,each channel is able to measure force in both tension and compression direction.Compact design makes 3-component load cell F3F suitable for 3-axis force measurement applications with limited mounting space.You may find 3D force sensor F3F interchangeable with interface 3-axis load cell 3A120 series. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Dimensions(in milimeter)
Specifications
| Rated Capacity | 200N / 45lb / 20kg 300N / 65lb / 30kg 500N / 110lb / 50kg 1kN / 220lb / 100kg 2kN / 450lb / 200kg 3kN / 670lb / 300kg 5kN / 1120lb / 500kg |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø6*3000mm 12-pin shielded |
| Wiring code | 4-wire connection for each axis |
Triaxial Force Load Cell 500N 1kN 2kN 3kN 5kN 3-component Force Sensor
