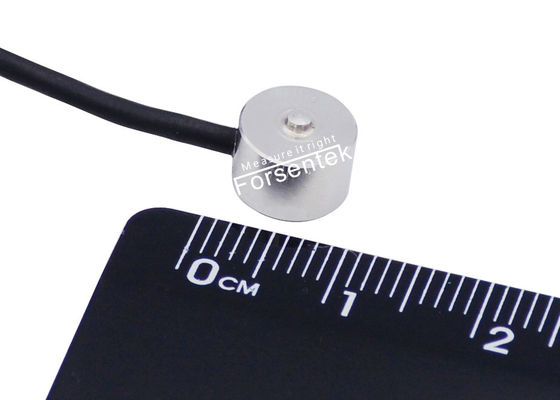

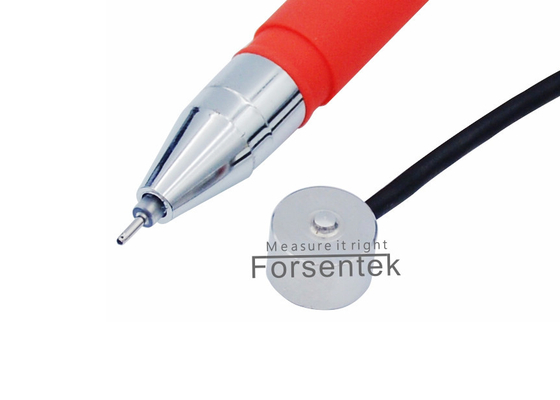

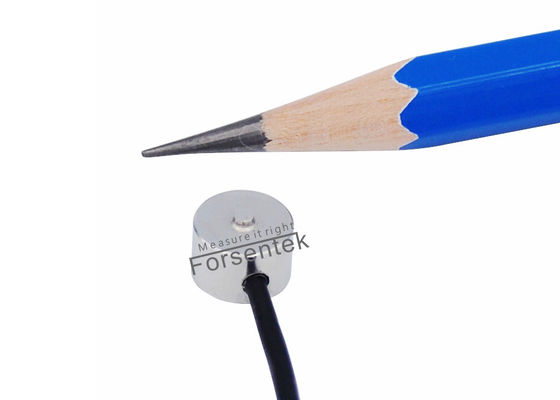

Micro compression load cell 5kg 10kg 20kg 50kg smallest button load cell
Subminiature compression load cell FC8E is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement.Miniature load cell FC8E offers 50N / 100N / 200N / 300N / 500N five measuring ranges to choose from. Smallest load cell FC8E is featured with only 8mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.Typical applications for transducer FC8E are such as clamping force measuremen,force overload protection, load distribution analysis, pressing die force measurement, auto equipment, assembly line and so on.

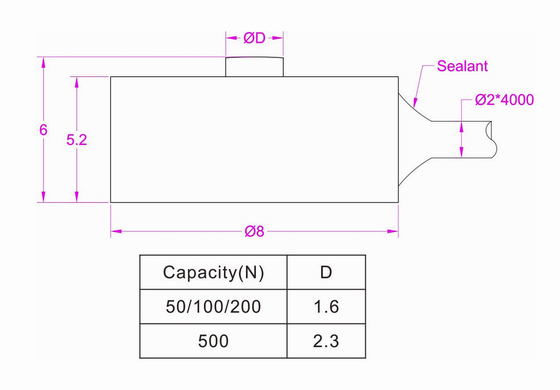

Dimensions(unit in milimeter)
Specifications
| Capacity |
5kg / 50N / 11lb 10kg / 100N / 22 lbf 20kg / 200N / 44 lb 50kg / 500N / 110 lb |
| Rated output | 1.0 mV/V |
| Excitation | 3-8V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% R.O. |
| Hysteresis | ±1% R.O. |
| Nonrepeatability | ±0.5% R.O. |
| Creep(5min) | ±0.5% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 900±100 ohms |
| Output resistance | 900±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø2*4000mm 4-conductor |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
