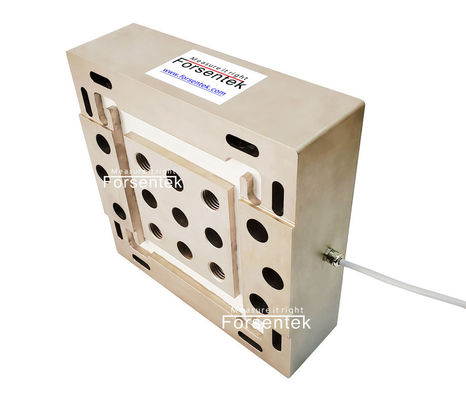

Triaxial Load Cell 50kN 100kN 200kN Multi-Axis Sensor 11.2klb 22.5klb 45klb

Triaxial Load Cell 50kN 100kN 200kN Multi-Axis Sensor 11.2klb 22.5klb 45klb

Triaxial Load Cell 50kN 100kN 200kN Multi-Axis Sensor 11.2klb 22.5klb 45klb
Triaxial Load Cell 50kN 100kN 200kN Multi-Axis Sensor 11.2klb 22.5klb 45klb Triaxial Load Cell 50kN 100kN 200kN Multi-Axis Sensor 11.2klb 22.5klb 45klb Triaxial Load Cell 50kN 100kN 200kN Multi-Axis Sensor 11.2klb 22.5klb 45klb

Large Image :  Triaxial Load Cell 50kN 100kN 200kN Multi-Axis Sensor 11.2klb 22.5klb 45klb Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: F3K
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 5 weeks
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1600pcs/month
Detailed Product Description
Usage: 3-axis Force Measurement Force Range: 200kN 100kN 50kN
Theory: Multi Axis Load Cell Output: Analog Sensor
Force Channel: Fx Fy Fz

Triaxial Load Cell 50kN 100kN 200kN Multi-Axis Sensor 11.2klbf 22.5klbf 45klbf

3-Axis Force Sensor F3K is made of alloy steel based on strain gauge technology intended for 3-axis force measurement in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction.Low profile multi-component force transducer F3K offers 50kN / 100kN / 200kN three measuring ranges to choose from.You may find 3-axis sensor is interchangeable with interface 3A300 series 3-axis load cell. Typical applications for triaxial force sensor F3K are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement and so on.

interface_3-axis_load_cell_3A300
Dimensions

interface_3A300-SERIES-3-AXIS_LOAD_CELL

Specifications

Rated Capacity

50kN / 11.2klb / 5ton

100kN / 22.5klb / 10ton

200kN / 45klb / 20ton

Sensitivity 1.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Non-linearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Non-repeatability ±0.1% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift on zero ±0.03% R.O./oC
Temperature shift on span ±0.02% R.O./oC
Input resistance 700±100 ohms
Output resistance 700±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Alloy steel
Cable Ø6*3000mm 12-pin shielded
Wiring code

4-wire connection for each axis


Multi Axis Force Sensor 50kN 100kN 200kN 3-Axis Load Cell 11.2klbf 22.5klbf 45klbf
interface_3-Axis_Force_Load_Cell_3A300
Click here to download datasheet
