Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor

Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor

Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor
Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor

Large Image :  Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FLN
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2100pcs/month
Detailed Product Description
Usage: Force Measurement Capacity: 50N 100N 200N 500N 1kN 2kN 3KN 5kN
Type: Miniature Load Cell Load Direction: Tension And Compression
Output: Analog Sensor Connection: M8/M4 Thread

Miniature force transducer 50N 100N 200N 500N tension and compression sensor

Miniature size Inline force sensor FLN is made of stainless steel based on strain gauge technology with mV/V output,in-line load cell offers 50N / 100N / 200N / 500N / 1kN / 2kN / 3kN / 5kN eight measuring ranges to choose from. M8/M4 threaded rods located on both end can be used to install attachments,such as eye bolt,bolt adapter,etc.,to fit requirement of different applications.In-line force sensor FLN can be used for both tension and compression force measurement,compact size makes it applicable for force measurement applications where mounting space is limited.

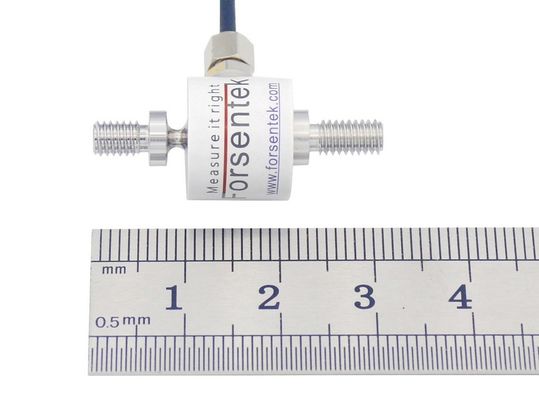

miniature_inline_load_cell_50N

Dimensions(Unit in "mm")

miniature_inline_force_transducer_50N_100N_200N_500N

Ordering code Measurement Range Force direction
FLN-5kg 0-50N / 0-5kgf Tension/compression
FLN-10kg 0-100N / 0-10kgf
FLN-20kg 0-200N / 0-20kgf
FLN-50kg 0-500N / 0-50kgf
FLN-100kg 0-1kN / 0-100kgf
FLN-200kg 0-2kN / 0-200kgf
FLN-300kg 0-3kN / 0-300kgf
FLN-500kg 0-5kN / 0-500kgf

Specifications

Capacity

50N / 100N / 200N / 500N / 1kN / 2kN / 3kN / 5KN
5kg / 10kg / 20kg / 50kg / 100kg / 200kg / 300kg / 500kg
10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf / 660lb / 1.1klb

Rated output 1.0mV/V
Excitation 3-10 V
Zero balance ±0.1mV/V
Nonlinearity ±1% R.O.
Hysteresis ±1% R.O.
Nonrepeatability ±0.5% R.O.
Creep(5min) ±0.2% R.O.
Safe overload 120% F.S.
Ultimate overload 150% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±100 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



Instruction of load cell output:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Traction Compression Force Sensor FLN is around 1.0mV/V.
Power supply of Miniature Push Pull Load Cell FLN is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Miniature Inline Load Cell FLN is normally within -12mV...+12mV for tension/compression force measurement.
Example: Miniature Push Pull Load Cell FLN-50kg with 1.0mV/V sensitivity powered by 5V DC,the output range is -5mV...+5mV.

Miniature_Force_Transducer_200N

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example one: Miniature Tension Compression Sensor FLN-20kg working with -10-10V amplifier, the Force-Voltage relationship will be 0-20kg compression load VS 0-10V output, 0-20kg tension load VS 0-(-10V) output, which is linear regardless of the error, 1V output corresponds to 2kg compression load, -2V output corresponds to 4kg tension load, and so on.

Example two: Miniature Traction And Compression Load Cell FLN-10kg working with 4-12-20mA amplifier, the Force-Current relationship will be 0-10kg compression load VS 12-20mA output, 0-10kg tension load VS 12-4mA output, which is linear regardless of the error, 12.8mA output corresponds to 1kg compression load, 8mA output corresponds to 5kg tension load, and so on.

miniature_tension_compression_force_sensor_50N

Click here to download datasheet
