| Usage: | Tension Compression Force Measurement | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 2kN 1kN 500N 200N 100N 50N |
| Material: | Stainless Steel |

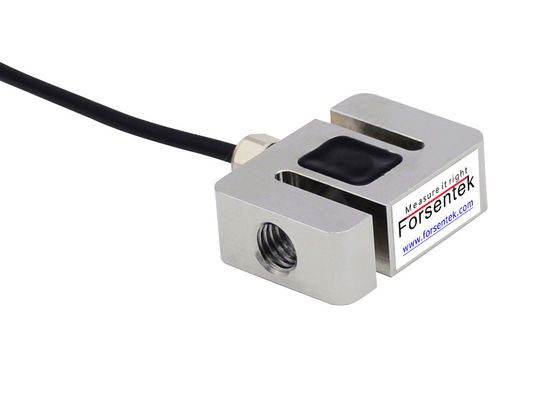

Small size compression tension load cell 200kg 100kg 50kg 20kg S type load cell
Small size s type load cell FSSK is made of stainless steel based on metal foil strain gauge technology. Compression and tension load cell FSSK offers 50N / 100N / 200N / 500N / 1kN / 2kN six measuring ranges to choose from,high accuracy with maximum 0.1% nonlinearity of the full scale.M8 threaded holes located on both ends can be used to mount attachments like load buttons,eye bolts,hooks to fit different applications.35*25*12mm compact design makes force transducer FSSK a perfect option for tension compression force measurement applications with limited space.Typical applications for loadcell FSSK are such as auto process control, material testing machines, tension meters, hand press force measurement, assembly line,etc..
Dimensions
Specifications
| Capacity |
50N 100N 200N 500N 1000N 2000N 5kgf 10kgf 20kgf 50kgf 100kgf 200kgf |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Small size compression tension load cell 200kg 100kg 50kg 20kg S type load cell
