Detailed Product Description
Usage: Compression Force Measurement Type: Micro Button Load Cell
Output: Analog Sensor Capacity: 5kg 10kg 20kg 50kg
Sensor Diameter: 10mm

Miniature compression load cell 5kg 10kg 20kg 50kg small force load cell

Subminiature compression force sensor FC10C is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement.Miniature button load cell FC10C offers 5kgf / 10kgf / 20kgf / 50kgf four measuring ranges to choose from.Small size compression load cell FC10C is featured with only 10mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.Typical applications for transducer FC10C are such as clamping force measuremen,force overload protection,load distribution analysis,pressing die force measurement,auto equipment,assembly line and so on.
miniature_compression_load_cell_50N_100N_200N_500N

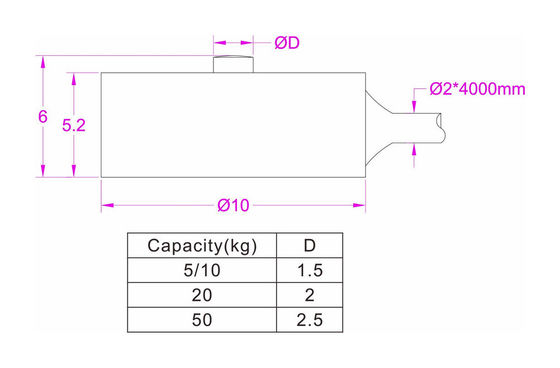

Dimensions(in "mm")
small_force_load_cell_50N_100N_200N_500N
Specifications

Capacity

5kg / 50N / 11 lb

10kg / 100N / 22lb

20kg / 200N / 44 lb

50kg / 500N / 110lb

Rated output 1.0mV/V
Excitation 3-10V
Zero balance ±0.05mV/V
Nonlinearity ±1% R.O.
Hysteresis ±1% R.O.
Nonrepeatability ±0.5% R.O.
Creep(3min) ±0.5% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance >700 ohms
Output resistance >700 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: FC10C-5kg with 1.0mV/V sensitivity powered by 5V DC,the output range is 0~5mV.
Example two: FC10C-10kg with 1.0mV/V sensitivity powered by 10V DC,the output range is 0~10mV.

Load cell + Signal amplifier:
Load cell normally outputs -30mV...+30mV which sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Micro load cell FC10C-5kg working with 0-5V amplifier,the load-output relationship will be 0-5kg load VS 0-5V output,it is linear within the error range.
