Compression force load cell 225lb 112 lbs 50 lbf 20lbs Low profile force sensor

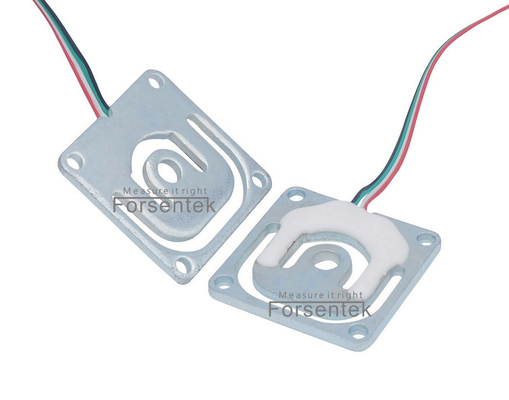

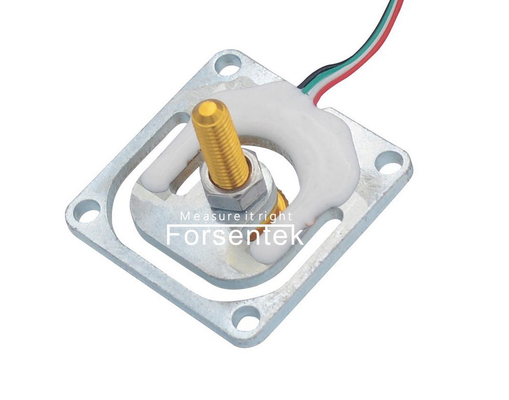

Low profile compression force load cell FMXD utilizes strain gauge technology which are bonded on to the alloy steel sensing body.Ultra thin load cell FMXD is available in 0-22lbf / 0-67lbf / 0~112 lbf / 0~225 lb four measuring ranges with maximum 0.1% F.S. non-linearity, it offers an accurate & low cost measurement solution for high volume applications.The 5.1mm thru hole located in the center of load cell can be used to mounting attachments to adapt to different applications. With its compact design, transducer FMXD low profile force sensor is suitable for applications where vertical space is limited,it is ideal for use in robotics,process control and automotive applications,etc..Custom made service is available for other measuring ranges with similar structure.

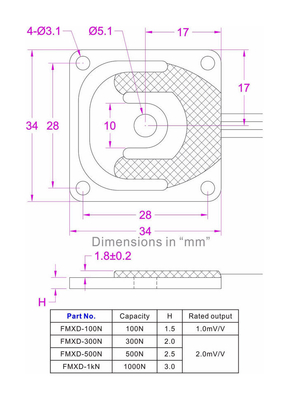

Dimensions(in "mm")
Specifications
| Capacity |
100N / 10kg / 20 lb 1000N / 100kg / 220 lb |
| Rated output | 1.0/2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.3mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(3min) | ±0.1% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Compensated temperature | -10...+50oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Alloy steel |
| Cable | AWG32*110mm |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Compression force load cell 225 lb 112 lbs 50 lbf 20lbs Low profile force sensor
