| Usage: | Compression Force Measurement | Capacity: | 10N 20N 50N 100N 200N |
|---|---|---|---|
| Type: | Miniature Force Transducer | Output: | Analog Sensor |
| Connection: | Flange To Flange |

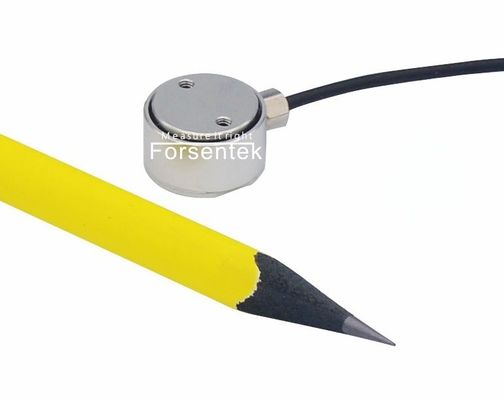

Miniature flange force sensor 200N 100N 50N 20N 10N compression force measurement
Flange Mounted Miniature Force Transducer FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.2% non-linearity of the rated capacity.Small size compression load cell FCFK offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N three measuring ranges to choose from,flange to flange mounting,compact design,you may find force transducer FCFK applicable for compression force measurement applications with limited mounting space,such as mold clamping force measurement,assembly force monitoring,force distribution test,etc..
Dimensions(in milimeter)
|
Specifications
| Capacity |
10N / 20N / 50N / 100N / 200N |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 385±50 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of miniature flange load cell FCFK is normally around 2.0mV/V.
Power supply of miniature compression sensor FCFK is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of micro compression load cell FCFK is normally within 0...+30mV.
Example one: Miniature Load Cell FCFK with 2.0mV/V powered by 10V DC,the output range is 0...+20mV.
Example two: Micro Force Sensor FCFK with 2.0mV/V powered by 5V DC,the output range is 0...+10mV.
Load cell + Signal amplifier:
Load cell normally outputs -30mV...+30mV which sometimes can hardly be recognized by signal processing units directly,so an signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Miniature Compression Force Transducer FCFK-100N working with 0-10V amplifier,the load-output relationship will be 0-100N load VS 0-10V output,it is linear within the error range.
Load cell + Digital indicator
Digital indicator can work directly with load cell without signal amplifier,here are some functions from the indicator:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output
