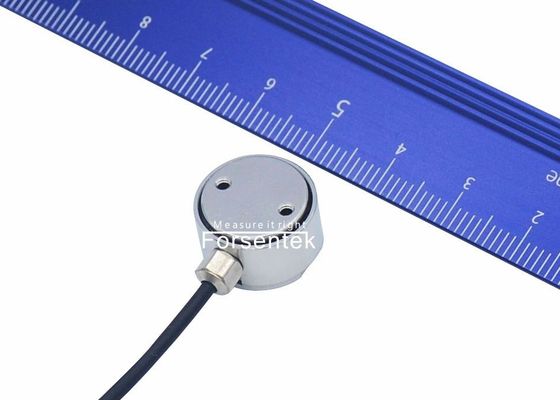

Miniature Force Sensor 2lb 5lb 10lb 22lb 44lb Compression Force Transducer

Miniature Force Sensor 2lb 5lb 10lb 22lb 44lb Compression Force Transducer

Miniature Force Sensor 2lb 5lb 10lb 22lb 44lb Compression Force Transducer
Miniature Force Sensor 2lb 5lb 10lb 22lb 44lb Compression Force Transducer Miniature Force Sensor 2lb 5lb 10lb 22lb 44lb Compression Force Transducer Miniature Force Sensor 2lb 5lb 10lb 22lb 44lb Compression Force Transducer

Large Image :  Miniature Force Sensor 2lb 5lb 10lb 22lb 44lb Compression Force Transducer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCFK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3105pcs/month
Detailed Product Description
Usage: Compression Force Measurement Capacity: 10N 20N 50N 100N 200N
Type: Minaiture Force Transducer Output: Analog Sensor
Mounting: Flanged Surface Structure: Column Load Cell

Miniature Force Sensor 2lb 5lb 10lb 22lb 44lb Compression Force Transducer

Miniature force sensor FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity.Small size compression load cell FCFK offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N three measuring ranges to choose from,flange to flange mounting,compact design,you may find force transducer FCFK applicable for compression force measurement applications with limited mounting space,such as mold clamping force measurement,assembly force monitoring,force distribution test,etc..

miniature_force_sensor_10lb_22lb_44lb

Dimensions(in milimeter)

miniature_force_transducer:44lb_22lb_10lb

Ordering code Measurement Range Force direction
FCFK-10N 0-10N/0-2.2lb Compression
FCFK-20N 0-20N/0-4.4lb
FCFK-50N 0-50N/0-0-10lb
FCFK-100N 0-100N/0-20lb
FCFK-200N 0-200N/0-45lb

Specifications

Capacity

2.2lb / 4.4lb / 10lb / 20lb / 45lb

10N / 20N / 50N / 100N / 200N
1kg / 2kg / 5kg / 10kg / 20kg

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 385±50 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø2*3000mm 4-core
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-



Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional loadcell).
Example one: 2.0mV/V load cell with 10V power supply,the output range is 0~20mV (-20mV...+20mV for bidirectional transducer).
Example two: 1.0mV/V load cell with 5V power supply,the output range is 0~5mV (-5mV...+5mV for bidirectional sensor).


Load cell + Signal amplifier:
Load cell normally outputs -30mV...+30mV which sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression load cell FCFK-100N working with 0-10V amplifier,the load-output relationship will be 0-100N load VS 0-10V output,it is linear within the error range.


Load cell + Digital indicator
Digital indicator can work directly with load cell without signal amplifier,here are some functions from the indicator:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output

Miniature force sensor 2lb 5lb 10lb 22lbs 44lb compression force transducer

compression_force_transducer_10lb_22lb_44lb

Click here to download datasheet
