Material: | Stainless Steel | Theory: | Resistance Sensor |
---|---|---|---|
Output: | Analog Sensor | Capacity: | 100kg 150kg 200kg 300kg 500kg 600kg |

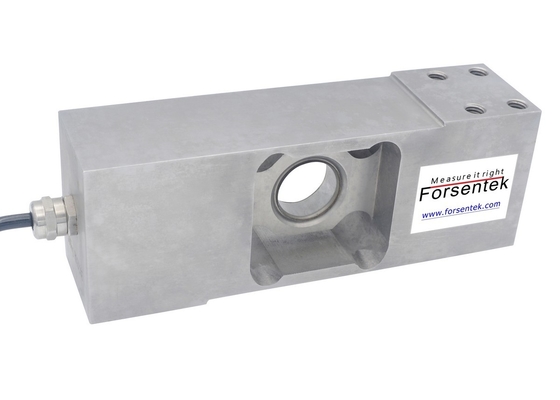

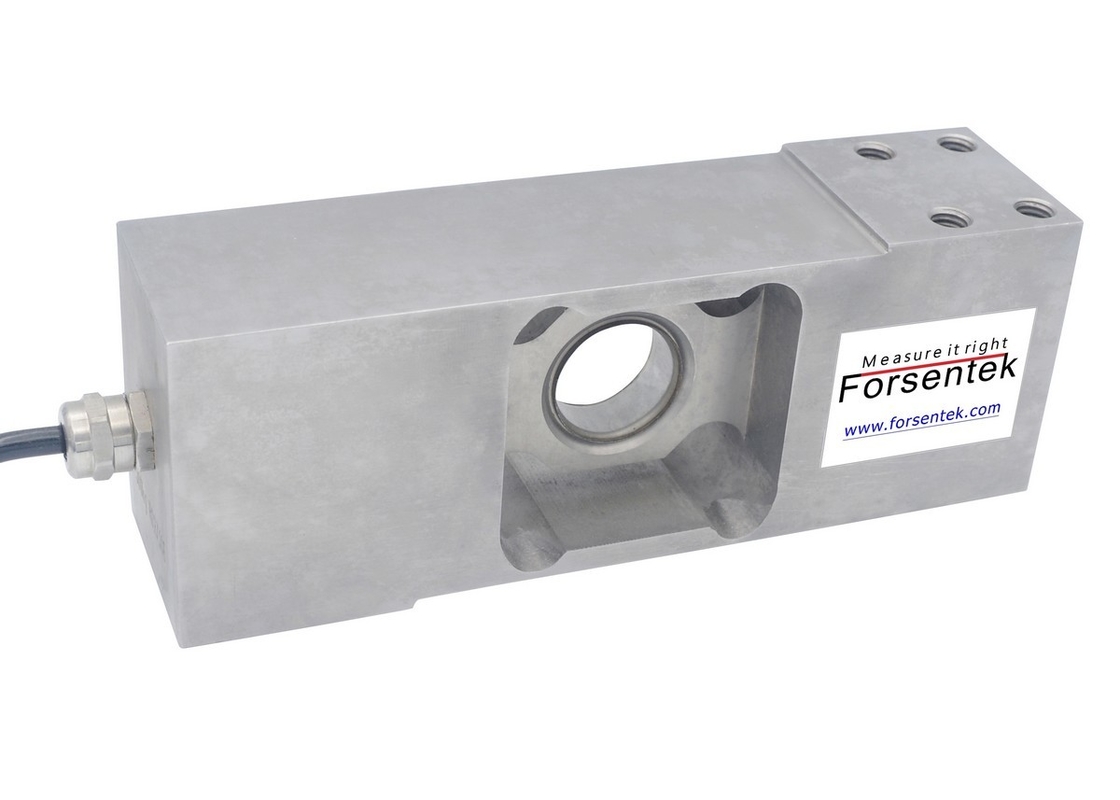

Stainless steel load sensor 500kg 300kg 200kg 100kg weight transducer IP69K
Stainless steel load sensor FHPT offers 100kg / 150kg / 200kg / 300kg / 500kg / 600kg six measuring ranges to choose from,Stain gauge technology and temperature compensation process for high accuracy with maximum 0.017% non-linearity of the full scale. It is corner trimmed for platform sizes up to 800x800mm,and optimised for out of center load sensitivity, this ensures that there will be no measurement error when the load is placed off centre, eg in a corner of a platform. Waterproof load cell FHPT is made of stainless steel and laser welded with IP69K ingress protection level to deliver high accuracy and stable measuring results under harsh working conditions such as outdoor applications and food industry with regular washdowns.Weighing load cell FHPT is interchangeable with ptglobal loadcell PTSSP6-GW, Anyload model 651KSCS, scaime AK 300, Soehnle SEB56B with lower cost but uncompromised quality. You may find model FHPT applicable for pharmaceutical industry, bagging and filling machines, checkweighers, small bucket and hopper weighing systems,etc..

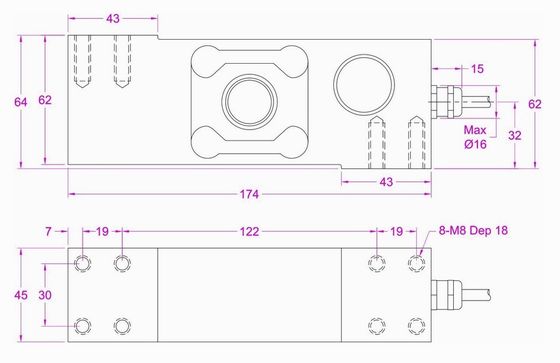

Dimensions(in milimeter)
Specifications
Capacity | 100kg 150kg 200kg 300kg 500kg 600kg |
Rated output | 2.0 mV/V |
Excitation | 3-15V |
Zero balance | ±0.05mV/V |
Nonlinearity | ±0.017% R.O. |
Hysteresis | ±0.017% R.O. |
Nonrepeatability | ±0.01% R.O. |
Creep(30min) | ±0.017% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 250% F.S. |
Compensated temperature | -10...+40oC |
Operating temperature | -35...+65oC |
Temperature shift zero | ±0.015% R.O./10oC |
Temperature shift span | ±0.015% R.O./10oC |
Input resistance | 380±30 ohms |
Output resistance | 352±5 ohms |
Insulation resistance | >5000M ohms |
Ingress protection | IP69K |
Material of element | Stainless steel |

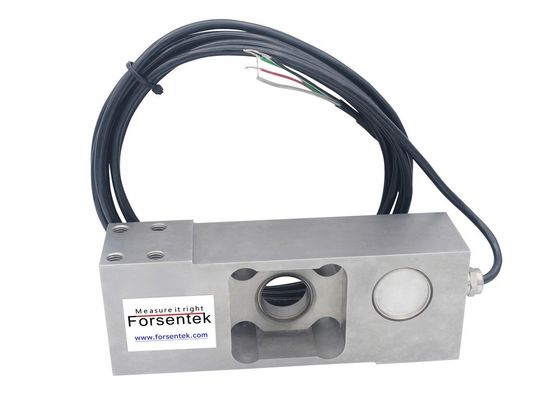

Cable | Ø5*6000mm 4-core shielded |
Wiring code |
Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |
Stainless steel load sensor 500kg 300kg 200kg 100kg weight transducer IP69K
