Smallest tension load cell 10kg micro force sensor 100N measure tensile force

Smallest tension load cell 10kg micro force sensor 100N measure tensile force

Smallest tension load cell 10kg micro force sensor 100N measure tensile force
Smallest tension load cell 10kg micro force sensor 100N measure tensile force Smallest tension load cell 10kg micro force sensor 100N measure tensile force Smallest tension load cell 10kg micro force sensor 100N measure tensile force

Large Image :  Smallest tension load cell 10kg micro force sensor 100N measure tensile force Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FSSQ
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2300pcs/month
Detailed Product Description
Usage: Force Measurement Type: Smallest Tension Load Cell 10kg
Output: Analog Sensor Capacity: 10N 20N 50N 100N 200N
Force Measurement Direction: Tension And Compression Connection: M2 Threaded Hole

Smallest tension load cell 10kg micro force sensor 100N measure tensile force
Smallest tension load cell FSSQ offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and five capacity ranges 10N / 20N / 50N / 100N / 200N to choose from.The jr s-beam load cell FSSQ utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity of the rated output,the compact design enables the FSSQ to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The micro force sensor features M2 threaded holes on two sides for the mounting of attachments or implements for both tension and compression force measurement in applications with limited space.In addition to our standard product portfolio,Forsentek is also capable of and willing to customize load cell force sensor according to clients' specific requirements.
smallest tension load cell 10kg

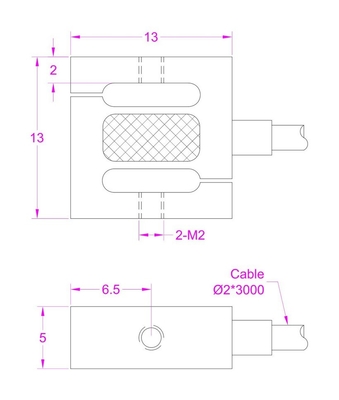

Dimensions(in milimeter)
smallest tension force sensor 100N
Specifications

Capacity

10N / 1kg / 2.2 lbf
20N / 2kg / 4.4 lbf
50N / 5kg / 11 lb
100N / 10kg / 22 lbf
200N / 20kg / 45 lbf

Rated output2.0mV/V
Excitation3-12V
Zero balance±0.1mV/V
Nonlinearity±0.2% R.O.
Hysteresis±0.2% R.O.
Nonrepeatability±0.1% R.O.
Creep(5min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature-10...+40oC
Operating temperature-20...+60oC
Temperature shift zero±0.03% R.O./oC
Temperature shift span±0.02% R.O./oC
Input resistance380±30 ohms
Output resistance352±3 ohms
Insulation resistance>2000M ohms
Ingress protectionIP62
Material of elementStainless steel
CableØ2*3000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-


Smallest tension load cell 10kg micro force sensor 100N measure tensile force
smallest force sensor 100N

Click here to download datasheet
