Miniature force transducer 2lb 5lb 10lb 20lb 40lb compression force measurement

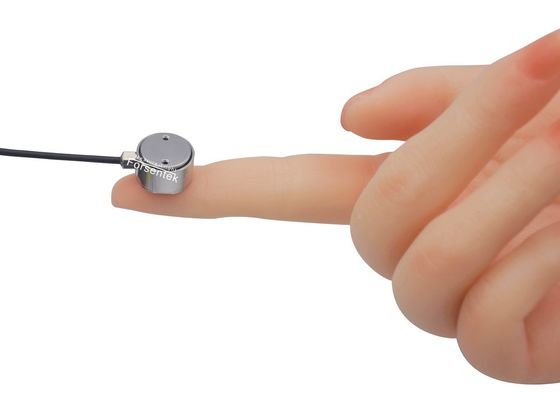

Miniature Force Transducer FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Small size flat load cell FCFK offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N five measuring ranges to choose from,flange to flange mounting, compact design, you may find Micro force sensor FCFK applicable for compression force measurement applications where mounting space is limited, such as fixture clamping force measurement, assembly force monitoring, force distribution test,etc..
Dimensions(in milimeter)
| Ordering code | Measurement Range | Force direction |
| FCFK-10N | 0-10N / 0-2.2lb | Compression |
| FCFK-20N | 0-20N / 0-4.4lb | |
| FCFK-50N | 0-50N / 0-0-10lb | |
| FCFK-100N | 0-100N / 0-20lb | |
| FCFK-200N | 0-200N / 0-45lb |
Specifications
| Capacity |
1kg / 2kg / 5kg / 10kg / 20kg |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 385±50 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Red--Excitationi+ Black--Excitation- Green--Signal+ White--Signal- |
