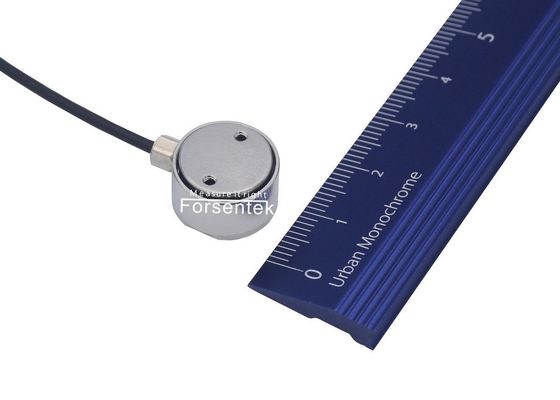

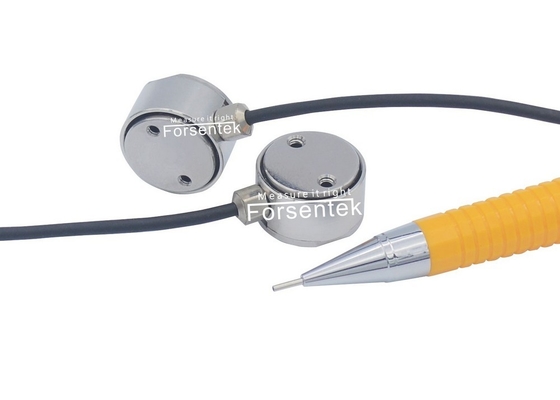

Miniature flange load cell 2lb 5lbs 10lb 20lb 40lb small size compression force sensor
Miniature flange load cell FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Small size flat load cell FCFK offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg three measuring ranges to choose from,flange to flange mounting,compact design,you may find force sensor FCFK applicable for compression force measurement applications where mounting space is limited,such as mold clamping force measurement,assembly force monitoring,force distribution test,etc..

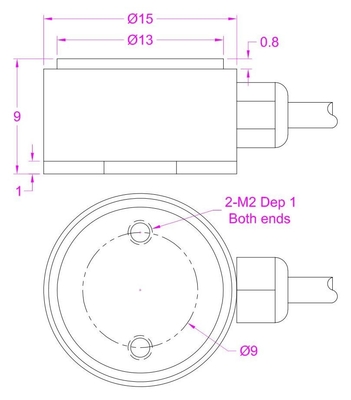

Dimensions(in milimeter)
| Ordering code | Measurement Range | Force direction |
| FCFK-10N | 0-10N / 0-2.2lb | Compression |
| FCFK-20N | 0-20N / 0-4.4lb | |
| FCFK-50N | 0-50N / 0-0-10lb | |
| FCFK-100N | 0-100N / 0-20lb | |
| FCFK-200N | 0-200N / 0-45lb |
Specifications
| Capacity |
1kg / 2kg / 5kg / 10kg / 20kg |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 385±50 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
