Material: | Stainless Steel | Theory: | Strain Gauge Load Cell |
---|---|---|---|
Output: | Analog Sensor | Capacity: | 25lb 50lb 100lb(6kg 12kg 15kg 30kg 60kg) |
Structure: | Single Point Load Cell | Ingress Protection: | IP68 |
Stainless steel load sensor 6kg 12kg 30kg 60kg 651HS Single point load cell
Stainless steel load sensor FHPS is made of stainless steel based on strain gauge technology,it offers 6kg / 12kg / 15kg / 30kg / 60kg (25lb / 50lb / 100lb) measuring ranges to choose from. High accuracy with maximum 0.02% non-linearity of the full scale.Corner trimmed for platform sizes up to 350x350mm, suitable for off-center load measurement.Laser welded with IP68 ingress protection, hermetic load cell FHPS is temperature compensated to deliver stable and accurate measuring results over long term even in harsh conditions,dynamic load cell FHPS is ideally suited for use in the chemical industry, food industry, pharmaceutical industry, bagging, filling and dosing machines, checkweighers, etc..You may find model FHPS interchangeable with Anyload 651HS single point load cell, Vishay Revere Transducers HPSM, Zemic BM6A, sensortronics paltform load cell 60064, ptglobal PTSSP6-AW, Scaime AK 60, Siemens SIWAREX WL260 SP-S SB with lower cost without compromising the quality.

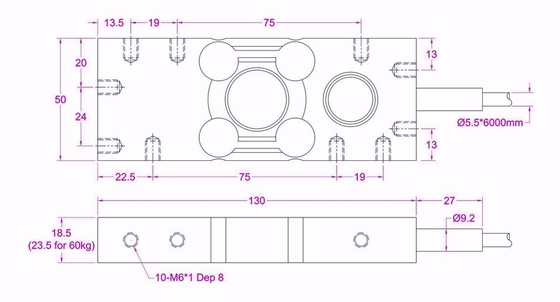

Dimensions(in milimeter)
Specifications
Capacity |
6kg 12kg 15kg 30kg 60kg (25lb 50lb 100lb) |
Rated output | 2.0 mV/V |
Excitation | 3-15V |
Zero balance | ±0.05mV/V |
Nonlinearity | ±0.02% R.O. |
Hysteresis | ±0.02% R.O. |
Nonrepeatability | ±0.015% R.O. |
Creep(30min) | ±0.02% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 250% F.S. |
Compensated temperature | -10...+40oC |
Operating temperature | -35...+65oC |
Temperature shift zero | ±0.018% R.O./10oC |
Temperature shift span | ±0.015% R.O./10oC |
Input resistance | 400±20 ohms |
Output resistance | 352±5 ohms |
Insulation resistance | >5000M ohms |
Ingress protection | IP68 |
Material of element | Stainless steel |

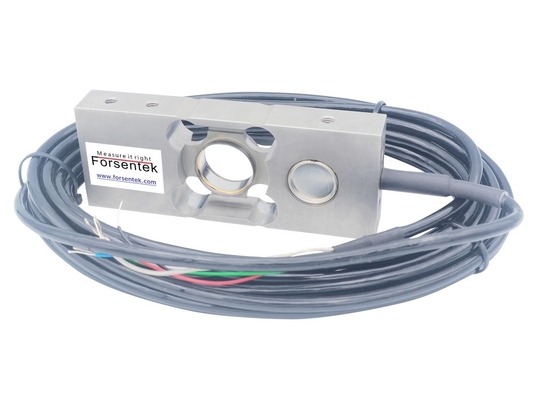

Cable | Ø5.5*6000mm 6-core shielded |
Wiring code |
Green--Exc+ Black--Exc- Yellow--Sen+ Blue--Sen- White--Sig+ Red--Sig- |
Stainless steel load sensor 6kg 12kg 30kg 60kg 651HS Single point load cell
