Miniature tension compression load cell 1kg micro force sensor 10N

Miniature tension compression load cell 1kg micro force sensor 10N

Miniature tension compression load cell 1kg micro force sensor 10N
Miniature tension compression load cell 1kg micro force sensor 10N Miniature tension compression load cell 1kg micro force sensor 10N Miniature tension compression load cell 1kg micro force sensor 10N Miniature tension compression load cell 1kg micro force sensor 10N

Large Image :  Miniature tension compression load cell 1kg micro force sensor 10N Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FSSM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2200pcs/month
Detailed Product Description
Usage: Force Measurement Type: Miniature Force Transducer 10N
Output: Analog Sensor Capacity: 10N 20N 50N 100N 200N 300N 500N 1KN
Force Direction: Tension And Compression Structure: Micro Jr S Beam Load Cell
Connection: M4/M3 Threaded Hole

Miniature tension compression load cell 1kg micro force sensor 10N

Miniature tension compression load cell FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of the full scale,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited mounting space.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.

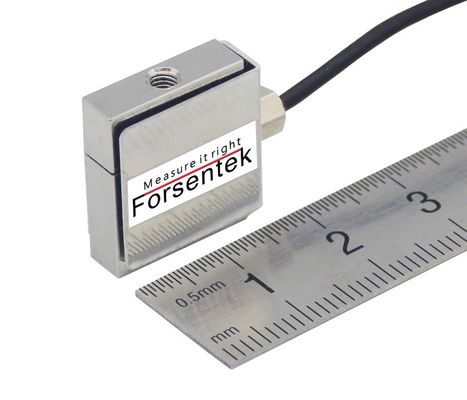

tension compression load cell 1kg

Dimensions(in milimeter)

micro force sensor 10N

Ordering code

Part No. Measuring range Measurement direction
FSSM-10N 0-10N / 0-1kgf Tension and compression
FSSM-20N 0-20N / 0-2kgf
FSSM-50N 0-50N / 0-5kgf
FSSM-100N 0-100N / 0-10kgf
FSSM-200N 0-200N / 0-20kgf
FSSM-300N 0-300N / 0-30kgf
FSSM-500N 0-500N / 0-50kgf
FSSM-1kN 0-1000N / 0-100kgf

Specifications

Capacity 10N / 1kg / 2.2 lbf
20N / 2kg / 4.4 lb
50N / 5kg / 10 lbf
100N / 10kg / 20 lb
200N / 20kg / 45 lbf
300N / 30kg / 65 lbf
500N / 50kg / 110 lbf
1kN / 100kg / 220 lb
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Miniature tension compression load cell 1kg micro force sensor 10N

micro load cell 1kg

tension compression load cell 10N

Click here to download datasheet
