| Usage: | Weight Measurement | Type: | Micro Load Cell Sensor |
|---|---|---|---|
| Capacity: | 2kg 3kg 5kg 10kg | Output: | Analog Transducer |

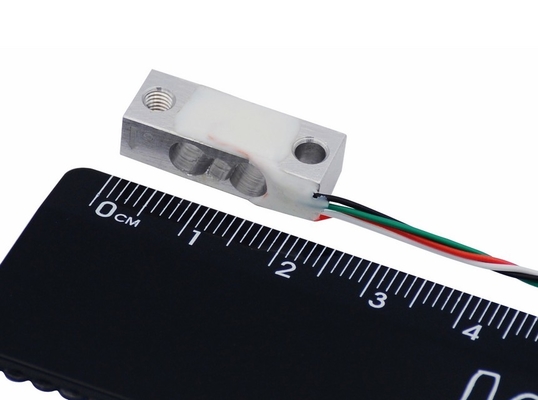

Miniature size load cell sensor 2kg/5kg/10kg weight sensor small size
Miniature load cell sensor FMZC is strain gauge based and delivers 1.0mV/V output from full wheatstone bridge.Small weight sensor FMZC offers 2kg/3kg/5kg/10kg four rated measuring ranges with maximum 0.1% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to common 350 ohms gauges.The compact size(L*W*H=22*8*5mm) and aluminum material makes FMZC weighs only about 2.2 grams which makes it suitable for weight measuring applications where total mass matters and mounting space is limited.Miniature load sensor FMZC offers a perfect mixture of small size,high accuracy and low cost,which makes weight sensor FMZC suitable for weight monitoring in consumer electronics.

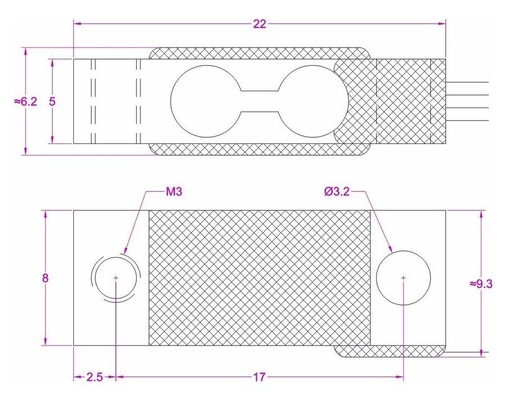

Dimensions:
Specifications
| Rated capacity |
2kg / 20N / 4.4 lbf 3kg / 30N / 6.6 lbf 5kg / 50N / 10lb 10kg / 100N / 20lb |
| Rated output | 1.0 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of R.O. |
| Hysteresis | ±0.1% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(2min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.05% of R.O./oC |
| Temperature shift span | ±0.05% of R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | 32AWG*180mm |
| Wiring code | Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |
