| Usage: | Rotating Torque Measurement | Type: | Contactless Torque Sensor |
|---|---|---|---|
| Output: | ±5V/±10V/4-20mA | Torque Measurement Direction: | Clockwise&Anti-clockwise |
| Capacity: | 0-500N*m |

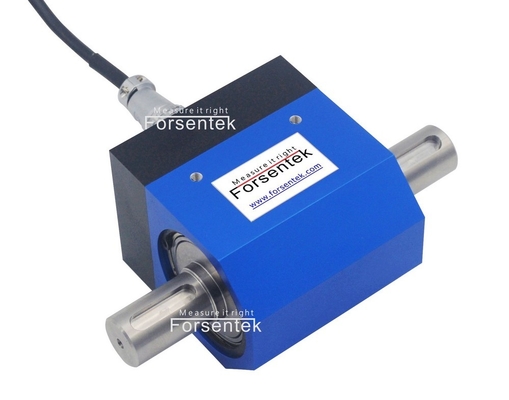

Non-contact rotary torque transducer for servo motor torque measurement
Non-contact rotary torque transducer FYTE offers a contactless transmission for bridge supply voltage and measurement transmission which enables continuous operation with low wear out.Non contact rotary torque transducer FYTE offers 1N*M / 2NM / 3N*M / 5NM / 10NM / 20NM / 30NM / 50N*M / 100NM / 200NM / 300NM / 500N*M twelve measuring ranges with maximum 8000RPM to choose from, ±5V /±10V / 4-20mA direct output from the transducer thanks to its built-in amplifier circuit for easy data processing. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement with low rotating speed. Typical applications for FYTE are such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,and so on.
Specifications
| Capacity |
1N*M / 8.8 lbf-in / 0.74 lbf-ft 2NM / 17.7 lb*in / 1.5 lb-ft 3N-M / 36.5 lbf*in / 2.2 lb*ft 5NM / 44lbf-in / 3.7lb*ft 10N*m / 88 lb*in / 7.4 lbf-ft 20NM / 177 lbf*in / 15 lb-ft 30NM / 265lbf*in / 22 lb*ft 50N*M / 442 lb-in / 37 lbf*ft 100NM / 885 lb*in / 74lbf*ft 200N-M / 1770 lbf-in / 147 lbf-ft 300NM / 2655 lbf*in / 221 lb-ft 500N-m / 4425 lbf-in / 368 lb*ft |
| Rated output | ±5V / ±10V / 4-20mA |
| Excitation | 24V DC (or 12V DC) |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Operating temp. | -10...+60oC |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Material of housing | Aluminum |
| Cable | Ø6*3000mm(Mating connector provided) |

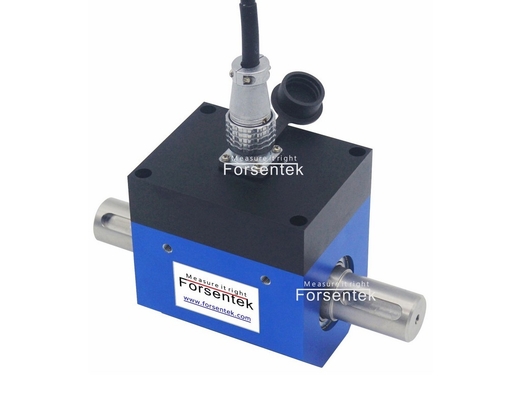

Shaft to shaft non-contact torque sensor for motor torque speed measurement

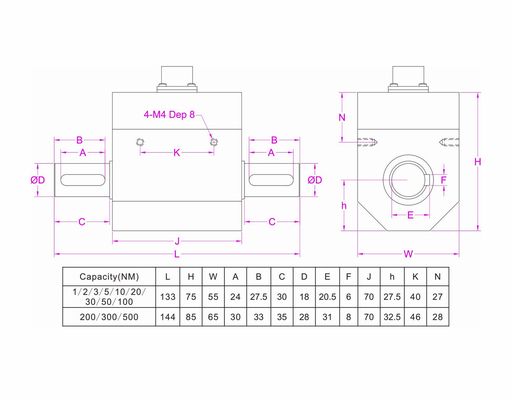

Dimensions
