Miniature force transducer 500N tension compression force measurement 200N

Miniature force transducer 500N tension compression force measurement 200N

Miniature force transducer 500N tension compression force measurement 200N
Miniature force transducer 500N tension compression force measurement 200N Miniature force transducer 500N tension compression force measurement 200N Miniature force transducer 500N tension compression force measurement 200N

Large Image :  Miniature force transducer 500N tension compression force measurement 200N Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FSSM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2880pcs/month
Detailed Product Description
Usage: Force Measurement Type: Micro Force Transducer
Output: Analog Sensor Capacity: 10N 20N 50N 100N 200N 300N 500N 1KN
Force Direction: Tension And Compression Structure: Miniature S Type Load Cell
Connection: M3/M4 Threaded Hole

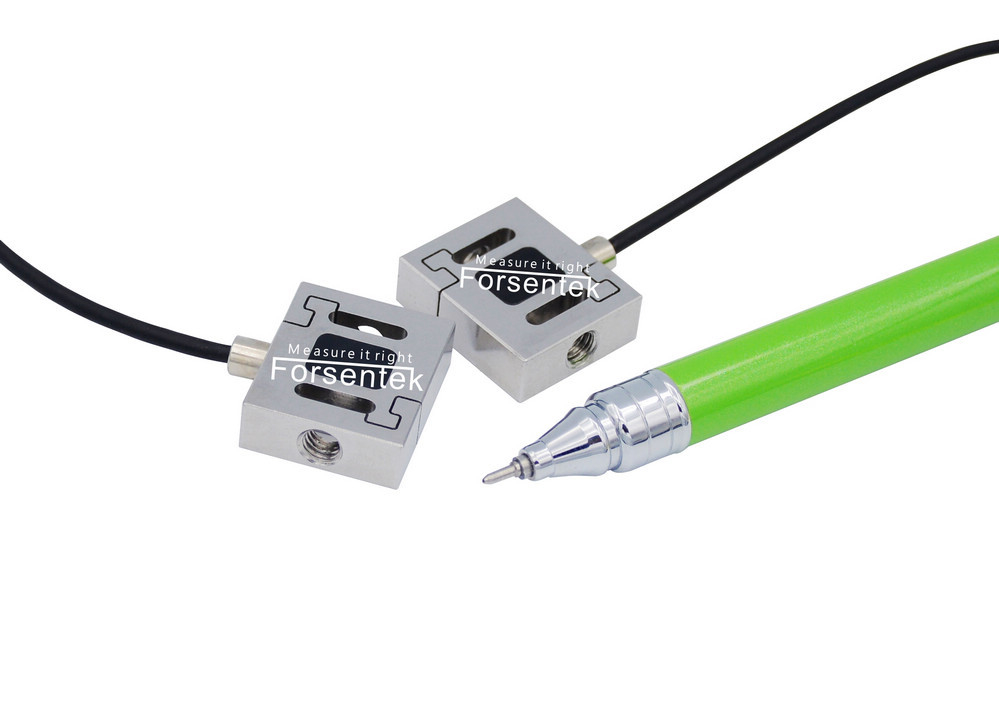

Miniature force transducer 500N tension compression force measurement 200N

Miniature force transducer FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of full scale,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited space.Miniature s type load cell FSSM is widely used for force gauges,tension meters,switch insertion force measurement,keyboard testing,spring testing,syringe testing,touchpad testing,cylinder thrust measurement and so on.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.
miniature_force_transducer_500N
Specifications

Capacity 10N / 1kg / 2.2 lbf
20N / 2kg / 4.4 lb
50N / 5kg / 10 lbf
100N / 10kg / 20 lb
200N / 20kg / 45 lbf
300N / 30kg / 65 lbf
500N / 50kg / 110 lbf
1kN / 100kg / 220 lb
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

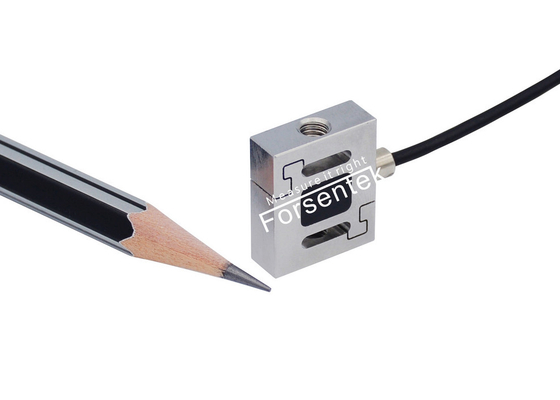

Miniature force transducer 500N tension compression force measurement 200N

200N_force_measurement

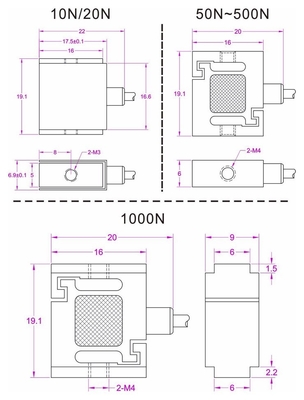

Dimensions(in milimeter)

force_transducer_miniature_size
Click here to download datasheet
