Usage: Force Measurement Theory: Miniature Tension Load Cell 1kg
Output: Analog Sensor Capacity: 10N 20N 50N 100N 200N 300N 500N 1KN
Force Measurement Direction: Tension And Compression Structure: Micro JR S Beam Force Sensor
Connection: M4/M3 Threaded Hole

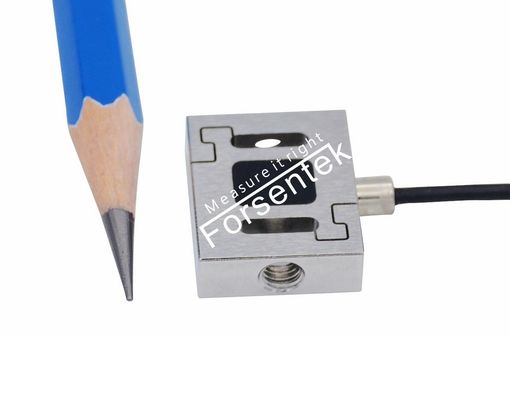

Miniature tension force sensor 10N tension force measurement transducer

Forsentek miniature tension force sensor FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of full scale,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited space.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.

miniature tension force sensor
Specifications

Capacity 10N / 1kgf / 2.2 lbf
20N / 2kgf / 4.4 lbf
50N / 5kgf / 11 lbf
100N / 10kgf / 22 lbf
200N / 20kgf / 45 lbf
300N / 30kg / 65 lbf
500N / 50kgf / 110 lbf
1kN / 100kgf / 220 lbf
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



Miniature tension force sensor 10N tension force measurement transducer

miniature tension sensor

Dimensions(in milimeter)

miniature tension transducer
Ordering Code:
FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N, FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN

Click here to download datasheet
