0-5kg load cell 4-20mA output 5kg weight sensor with internal amplifier

0-5kg load cell 4-20mA output 5kg weight sensor with internal amplifier

0-5kg load cell 4-20mA output 5kg weight sensor with internal amplifier
0-5kg load cell 4-20mA output 5kg weight sensor with internal amplifier 0-5kg load cell 4-20mA output 5kg weight sensor with internal amplifier

Large Image :  0-5kg load cell 4-20mA output 5kg weight sensor with internal amplifier Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FAHB
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Packaging Details: Carton
Delivery Time: 20-40 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Theory: Strain Gauge Load Cell With Built In Amplifier Output: 0-5V/0-10V/4-20mA
Capacity: 5kg 10kg 20kg 30kg 40kg

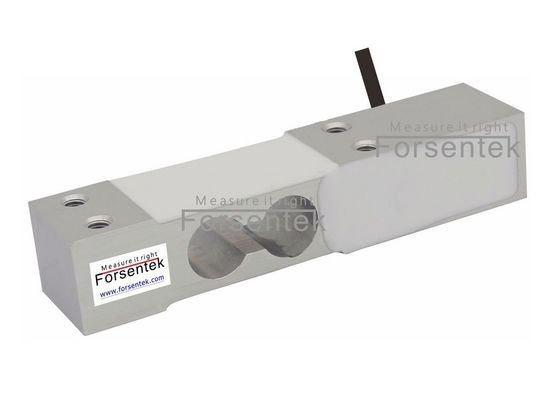

0-5kg load cell 4-20mA output 5kg weight sensor with internal amplifier

Load cell with built in amplifer can output 0-5V / 0-10V / 4-20mA signal for easy signal processing,model FAHB offers 5kg / 10kg / 20kg / 30kg / 40kg measuring ranges to choose from,custom design service is available for other capacities and specifications.The specially designed amplifier board has very small size which makes it possible to get it integrated into a beam type load cell with small modifications to the sensor size.Load cell with internal ampifier has many advantages such as compact design,easy to implement,lower cost compared to load cell with external amplifier.

5kg load cell 4-20mA output

Specifications

Capacity

5kg 10kg 20kg 30kg 40kg

(Customizable)

Rated output 0-5V/0-10V/4-20mA
Excitation 12V/24V DC
Zero balance ±3% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(3min) ±0.05% R.O.
Safe overload 120% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element Aluminum alloy
Cable Ø4*1000mm 4-core shielded cable
Wiring code

3-wire for voltage output

2-wire for current output



Dimensions(unit in "mm)

load cell with internal amplifier

load cell with internal amplifier pdf
