| Usage: | Force Measurement | Type: | Miniature Jr. S Beam Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 10N 20N 50N 100N 200N |
| Force Measurement Direction: | Tension And Compression | Connection: | M2 Threaded Hole |
Miniaure force sensor 10N 20N 50N 100N 200N jr s-beam load cell

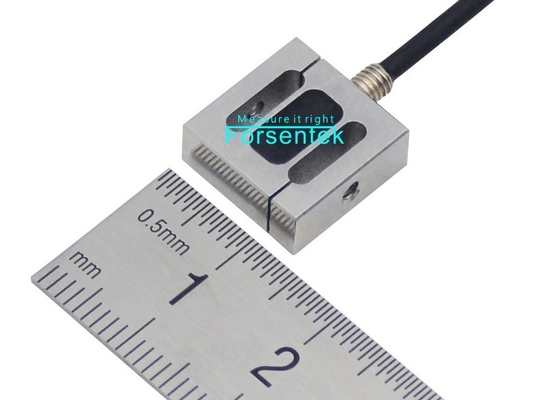

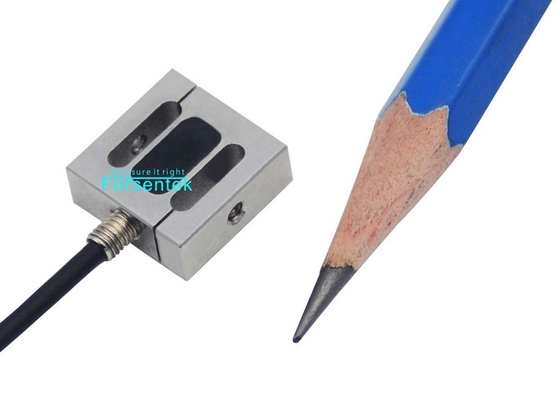

Forsentek miniature s-beam load cell FSSQ offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and 5 capacity ranges 10N / 20N / 50N / 100N / 200N to choose from.The jr s-beam load cell FSSQ utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity,the compact design enables the FSSQ to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The micro force sensor features M2 threaded holes on two sides for the mounting of attachments or implements for both tension and compression force measurement in applications with limited space.
Specifications
| Capacity |
10N / 1kg / 2.2 lbf |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
Miniature force sensor 200N 100N 50N 20N 10N Miniature s type load cell
Dimensions(in milimeter)
Ordering Code:FSSQ-10N, FSSQ-20N, FSSQ-50N, FSSQ-100N, FSSQ-200N
