| Usage: | Multi-axis Force Measurement | Type: | Triaxial Force Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Force Range: | 0-200kN |

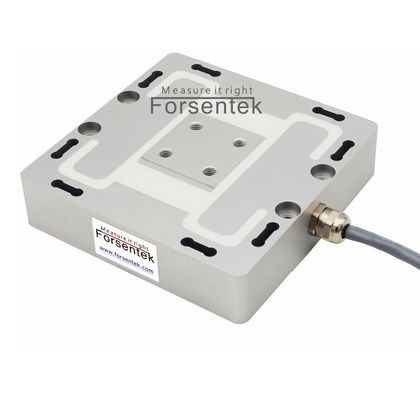

3 Axis Load Cell 200kN Multi Axis Force Sensor 20 tons Triaxial Load Cell
3-axis Load Cell is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction.low profile design makes F3F suitable for 3-axis force measurement where mounting space is limited.Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, mechanics simulation, actuator operating force measurement,etc.
Specifications
| Rated Capacity |
200N 300N 500N 1kN 2kN 3kN 5kN 10kN 20kN 30kN 50kN 100kN 200kN |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum/Alloy/S.S. |
| Cable | Ø6*3000mm 12-pin shield |
| Wiring code |
4-wire connection for each axis |
3 axis load cell 200kN multi axis force sensor 20 tons triaxial load cell
