| Usage: | 3 Axis Force Measurement | Capacity: | 10N 20N 50N 100N |
|---|---|---|---|
| Type: | 3-Axis Force Sensor | Output: | Analog Transducer |
| Load Direction: | Fx/Fy/Fz |

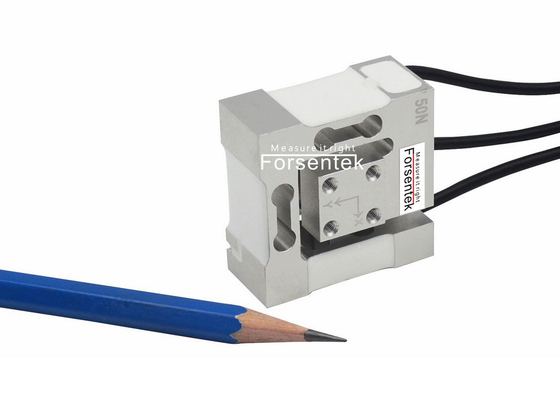

3 axis force transducer 50N triaxial force sensor 5kg triaxial load cell force sensor 10 lb

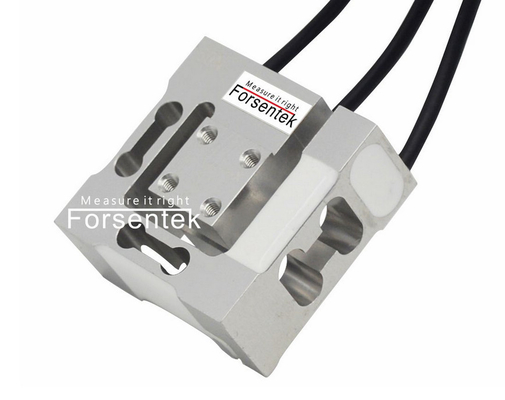

3-axis force transducer FNZ is made of aluminum based on strain gauge technology, tri-axial force sensor FNZ delivers mV/V output for each axis from wheatstone bridge which requires no mathematical manipulation for 3-axis force measurement. Triaxial Load Cell FNZ is available in 0-10N / 0-20N / 0-50N / 0-100N four measuing ranges for all three axes, each axis can be used for both tension and compression force measurement.Compact structure, high accuracy, low crosstalk, competitive price, you may find multi axis force sensor FNZ suitable for applications such as friction force measurement, force control in robotics, force monitoring in handing devices, industrial test benches, etc..
Specifications
| Capacity |
10N / 1kg / 2.2lb 20N / 2kg / 4.4 lb 50N / 5kg / 11lb 100N / 10kg / 22lb |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(2min) | ±0.2% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+25oC |
| Operating temperature | -10...+50oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 350±50 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | Ø3*2000mm(for each axis) |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
3 axis force transducer 50N triaxial force sensor 5kg triaxial load cell 10lb
Ordering code of 3 axis force transducer FNZ
| Part No. | Capacities |
| Fx=Fy=Fz | |
| FNZ-10N |
10N |
| FNZ-20N | 20N |
| FNZ-50N | 50N |
| FNZ-100N | 100N |

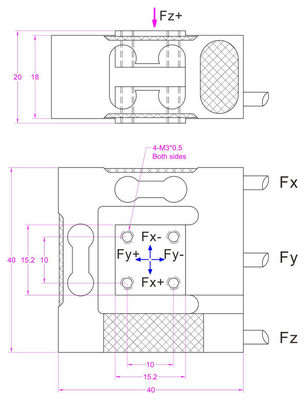

Dimensions(unit in "mm")
