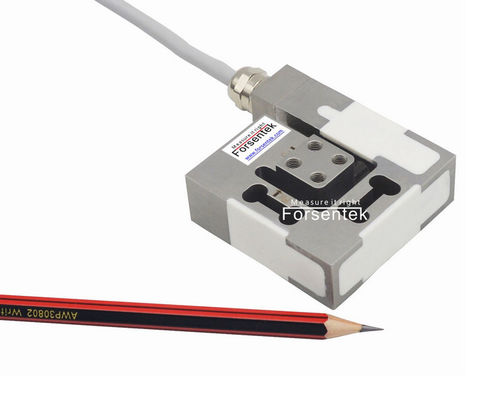

3-Axis Load Cell 20kg Tri-axial Load Cell 200N Multi Axis Force Sensor 45lb

Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales
I'm Online Chat Now

3-Axis Load Cell 20kg Tri-axial Load Cell 200N Multi Axis Force Sensor 45lb

China 3-Axis Load Cell 20kg Tri-axial Load Cell 200N Multi Axis Force Sensor 45lb supplier
3-Axis Load Cell 20kg Tri-axial Load Cell 200N Multi Axis Force Sensor 45lb supplier 3-Axis Load Cell 20kg Tri-axial Load Cell 200N Multi Axis Force Sensor 45lb supplier 3-Axis Load Cell 20kg Tri-axial Load Cell 200N Multi Axis Force Sensor 45lb supplier

Large Image :  3-Axis Load Cell 20kg Tri-axial Load Cell 200N Multi Axis Force Sensor 45lb

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: F3G

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3-25 business days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2200pcs/month
Contact Now
Detailed Product Description
Usage: Multi-axis Force Measurement Force Range: 1kN 500N 300N 200N 100N 50N 20N
Type: 3-Axis Load Cell Output: Analog Sensor

3-axis load cell 20kg triaxial load cell 200N multi axis force sensor 45lb

Multi Axis Force Sensor F3G is designed to measure force in Fx/Fy/Fz at the same time, each axis is able to measure force in both tension and compression direction with 0-4.5lb / 0-6.7lb / 0-10lb / 0-20 lb / 0-45lb / 0-67lb / 0-110 lb / 0-220 lb eight rated measuring ranges to choose from.Very low profile design with total 26mm height makes F3G suitable for 3-axis force measurement where mounting space is limited.Typical applications for this 3-Axis Load Cell F3G are for example force exertion control in robotics, force simulators, automotive testing & controlling, industrial test benches, grinding force control, actuator operating force measurement and so on.

3 axis load cell 20kg

Specifications

Rated Capacity

20N / 2kg / 4.5lb

30N / 3kg / 6.7 lbf

50N / 5kgf/ 10 lb

100N / 10kg / 20lb

200N / 20kg / 45 lb

300N / 30kg / 67 lbs

500N / 50kg / 110lb

1000N / 100kg / 225lb

Sensitivity 1.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Non-linearity ±0.2% of capacity
Hysteresis ±0.2% of capacity
Non-repeatability ±0.1% of capacity
Creep(5min) ±0.05% of capacity
Safe overload 150% of capacity
Ultimate overload 200% of capacity
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift on zero ±0.03% R.O./oC
Temperature shift on span ±0.02% R.O./oC
Input resistance 385±50 ohms
Output resistance 350±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element

<100N Aluminum alloy

>50N Stainless steel

Cable Ø6*3000mm 12-wire shielded cable
Wiring code 4-wire connection for each axis



3-Axis Load Cell 20kg Tri-axial Load Cell 45lb Multi Axis Force Sensor 200N

multi axis force sensor 200N

Ordering code of multi axis load cell F3G

Ordering

code

Capacity Material
Fx=Fy Fz
F3G-20N 20N 20N







Aluminum alloy

F3G-20-20-30 30N
F3G-30N 30N 30N
F3G-30-30-50 50N
F3G-50N 50N 50N
F3G-50-50-100 100N
F3G-100N 100N 100N







Stainless steel

F3G-100-100-200 200N
F3G-200N 200N 200N
F3G-200-200-300 300N
F3G-300N 300N 300N
F3G-300-300-500 500N
F3G-500N 500N 500N
F3G-500-500-1k 1kN
F3G-1kN 1kN 1kN

Dimensions(Unit in "mm)

triaxial load cell 200N
Click here to download datasheet
