| Usage: | Multi-axis Force Measurement | Theory: | Multi Axis Load Cell |
|---|---|---|---|
| Force Range: | 1kN 500N 300N 200N 100N 50N 20N | Output: | Analog Sensor |
| Load Direction: | Fx Fy Fz |
Multi-axis Force Sensor 500N 3 Axis Load Cell 50kg Triaxial Load Cell 100lb
3 axis load cell F3G is designed to measure force in Fx/Fy/Fz at the same time, each axis is able to measure force in both tension and compression direction.Very low profile design with total 26mm height makes F3G suitable for 3-axis force measurement where mounting space is limited.Typical applications for this type of transducer are for example force exertion control in robotics, industrial test benches, grinding force control, actuator operating force measurement and so on.
Specifications
| Rated Capacity |
20N / 2kgf / 4.5lbf 30N / 3kgf / 6.7 lb 50N / 5kgf / 11 lb 100N / 10kgf / 22lb 200N / 20kgf / 45 lb 300N / 30kgf / 67 lb 500N / 50kgf / 112lb 1000N / 100kgf / 225lb |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.2% of the capacity |
| Hysteresis | ±0.2% of the capacity |
| Non-repeatability | ±0.1% of the capacity |
| Creep(5min) | ±0.05% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 385±50 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element |
<100N Aluminum alloy >50N Stainless steel |
| Cable | Ø6*3000mm 12-wire shielded cable |
| Wiring code | 4-wire connection for each axis |
Multi-axis force sensor 500N 3 axis load cell 50kg Triaxial load cell 100lb

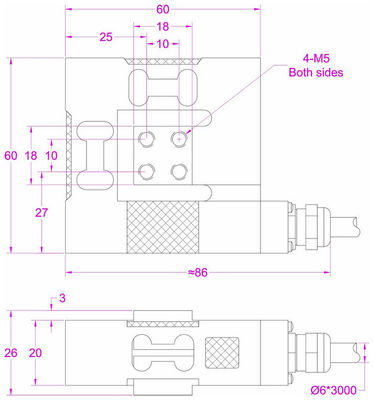

Dimensions(Unit in "mm)
Ordering code of triaxial force sensor F3G
|
Ordering code |
Capacity | Material | |
| Fx=Fy | Fz | ||
| F3G-20N | 20N | 20N |
Aluminum alloy |
| F3G-20-20-30 | 30N | ||
| F3G-30N | 30N | 30N | |
| F3G-30-30-50 | 50N | ||
| F3G-50N | 50N | 50N | |
| F3G-50-50-100 | 100N | ||
| F3G-100N | 100N | 100N |
Stainless steel |
| F3G-100-100-200 | 200N | ||
| F3G-200N | 200N | 200N | |
| F3G-200-200-300 | 300N | ||
| F3G-300N | 300N | 300N | |
| F3G-300-300-500 | 500N | ||
| F3G-500N | 500N | 500N | |
| F3G-500-500-1k | 1kN | ||
| F3G-1kN | 1kN | 1kN | |
