| Usage: | Tension Compression Force Measurement | Theory: | Strain Gauge Force Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 10kg(100N) |
Miniature tension compression load cell 5kg 10kg 20kg 50kg in line load cell with M4 threads
Miniature in-line load cell FLN is made of stainless steel based on strain gauge technology,M4 threaded rods located on both end can be used to install attachments,such as female eye bolt,bolt adapter,etc.,to fit requirement of different applications.In-line force sensor FLN can be used for both tension and compression force measurement.
Specifications
| Capacity |
5kg / 50N 10kg / 100N 20kg / 200N 50kg / 500N |
| Rated output | 1.0 mV/V |
| Excitation | 3-12 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% R.O. |
| Hysteresis | ±1% R.O. |
| Nonrepeatability | ±0.5% R.O. |
| Creep(5min) | ±0.2% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | >700 ohms |
| Output resistance | >700 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Stainless steel |
| Cable | Ø2*4000mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Miniature load cell 5kg 10kg 20kg 50kg in line load cell with M4 threads

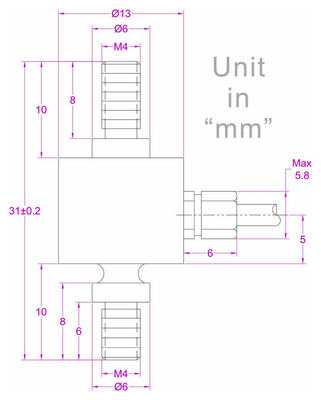

Dimensions:
