5kN tension compression load cell 10kN IP68 force transducer 20kN

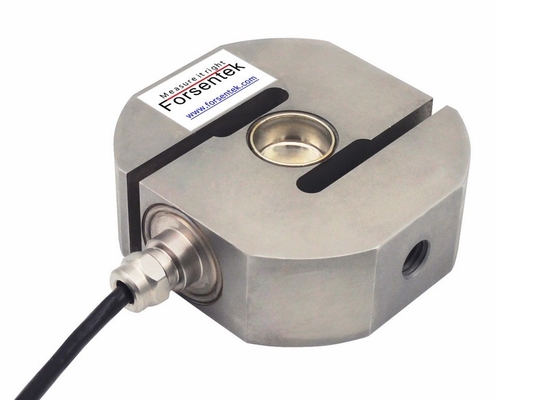

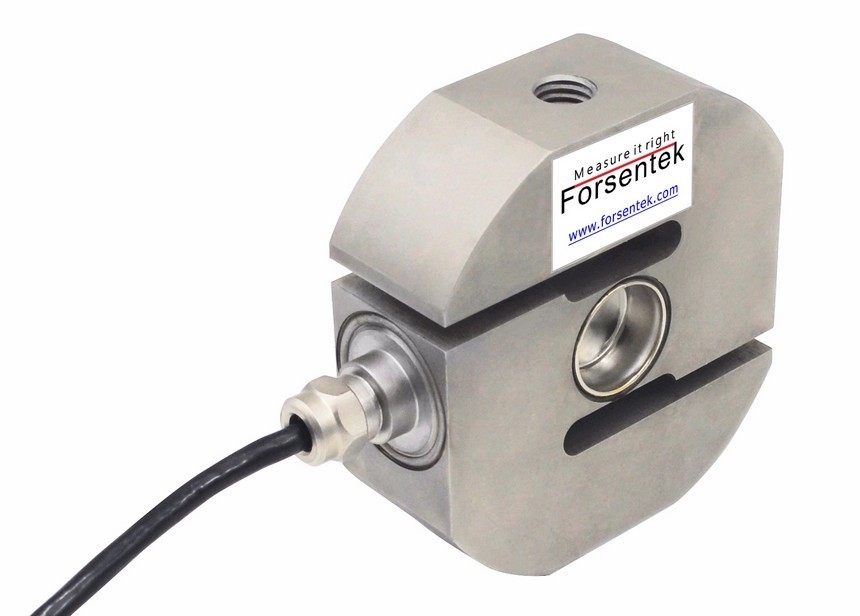

IP68 tension compression load cell FSRT is made based on strain gauge technology to deliver 2.0mV/V output from the built-in wheatstone bridge,S-beam load cell FSRT is intended for both tension and compression force measurement with 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-50kN / 0-60kN / 0-75kN measuring ranges to choose from.The internal threads located on both ends can be used to install swivel heads or load buttons for different purposes.S-type tension load cell FSRT is made of stainless steel and IP68 hermetically sealed,which makes it applicable for outdoor weighing applications with harsh working conditions.Temperature compensation process ensures stable performance throughout the working temperature range.Typical applications for this type of force transducer are for example suspended tank and vessel weighing, hopper scales, concrete batching equipment, auto-filling machines, conveyor belt scales, hanging scales, material testing machines, and so on.

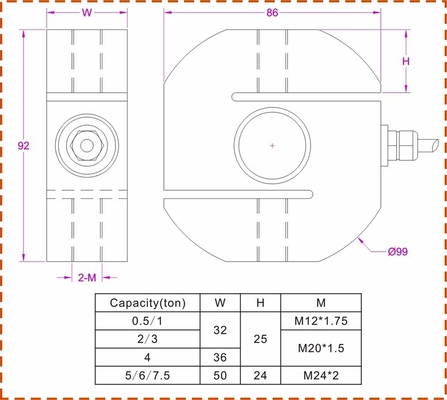

Specifications
| Capacity |
500kg / 5kN 1000kg / 10kN 2000kg / 20kN 3000kg / 30kN 4000kg / 40kN 5000kg / 50kN 6000kg / 60kN 7500kg / 75kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.017% R.O. |
| Hysteresis | ±0.017% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.017% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 300% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -35...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 350±5 ohms |
| Output resistance | 350±3 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable |
500kg---Ø5*3000mm 1000kg~7500kg---Ø5*6000mm 4-core shielded cable |
| Wiring code |
Red--Exc+ Black--Exc- |
5kN tension compression load cell 10kN tension compression force transducer 20kN
