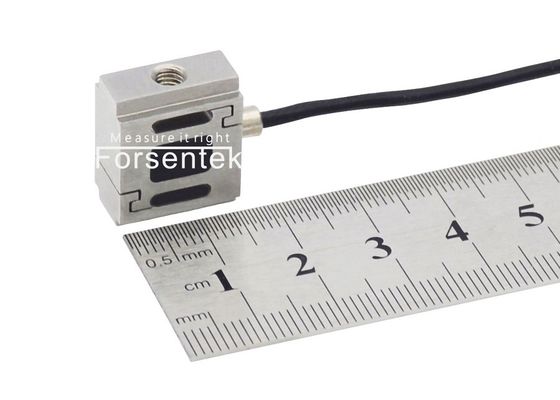

1000N force measurement 1kN tension compression force sensor 200 lbs

1000N force measurement 1kN tension compression force sensor 200 lbs

1000N force measurement 1kN tension compression force sensor 200 lbs
1000N force measurement 1kN tension compression force sensor 200 lbs 1000N force measurement 1kN tension compression force sensor 200 lbs 1000N force measurement 1kN tension compression force sensor 200 lbs

Large Image :  1000N force measurement 1kN tension compression force sensor 200 lbs Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FSSM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Usage: Force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor Capacity: 10N 20N 50N 100N 200N 300N 500N 1KN
Force Measurement Direction: Tension And Compression

1000N force measurement 1kN tension compression force sensor 200 lbs
1KN force measurement 1000N
Features

  • Miniature force sensor,very compact size
  • Strain gauge technology,high accuracy
  • Tension and compression force measurement

Specifications

Capacity 10N/1kgf/2.2lbf
20N/2kgf/4.4lbf
50N/5kgf/11.2lbf
100N/10kgf/22.4lbf
200N/20kgf/45lbf
300N/30kgf/67lbf
500N/50kgf/112lbf
1kN/100kgf/224lbf
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05 R.O.
Creep(30min) ±0.1 R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*4000mm
Wiring code

Compression@
Red--E+ Black--E- Green--S+ White--S-





Miniature load cell force sensor tension compression force measurement

1000N force sensor 1KN

Dimensions(in milimeter)

1KN load cell 200 lbs

Ordering Code:
FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N, FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN
