Usage: | Force Measurement | Type: | Flange Mount Force Transducer |
---|---|---|---|
Output: | Analog Sensor | Capacity: | 20kN 10kN 5kN 2kN 1kN 500N 200N |
Force Direction: | Tension And Compression | Mounting: | Flange-to-Flange |
Flange load cell 200N 500N 1000N tension compression force measurement
Features
Specifications
Capacity |
200N / 20kgf / 45lb 2000N / 200kgf / 450 lb 20kN / 2000kgf / 4.5k lb |
Rated output | 2.0 mV/V |
Excitation | 3-15V |
Zero balance | ±0.05mV/V |
Nonlinearity | ±0.1% R.O. |
Hysteresis | ±0.1% R.O. |
Nonrepeatability | ±0.05% R.O. |
Creep(5min) | ±0.05% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temperature | -10...+40oC |
Operating temperature | -20...+60oC |
Temperature shift zero | ±0.02% R.O./oC |
Temperature shift span | ±0.02% R.O./oC |
Input resistance | 400±50 ohms |
Output resistance | 400±10 ohms |
Insulation resistance | >2000M ohms |
Ingress protection | IP62 |
Material of element | Stainless steel |
Cable | Ø3*3000mm 4-core shielded |
Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

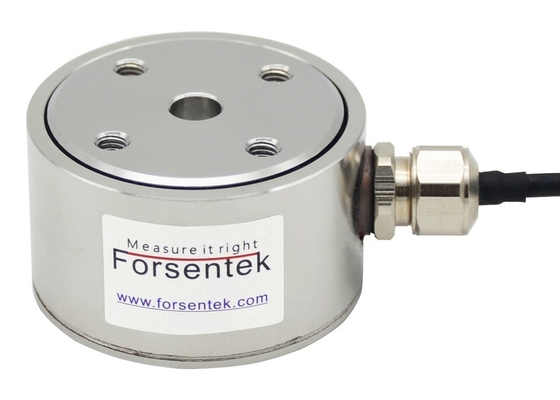

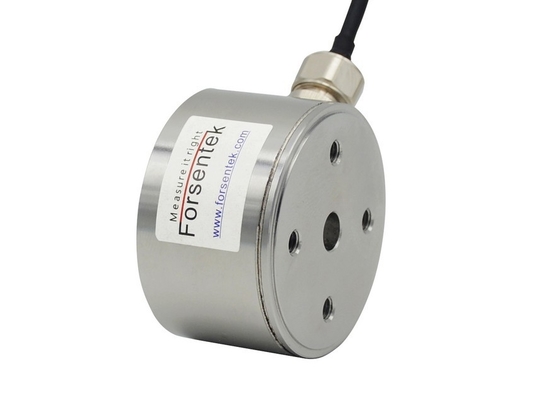

Flange mount load cell for tension compression force measurementLFS 270

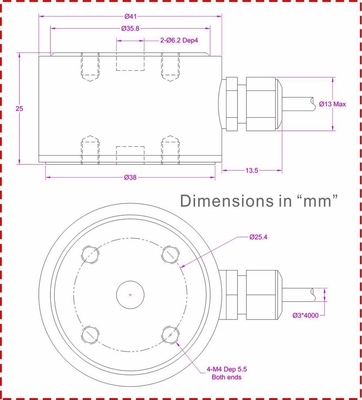

Dimensions(in "mm")
