Micro load cell 10kg 5kg 3kg 2kg Miniature force sensor 100N 50N 30N 20N

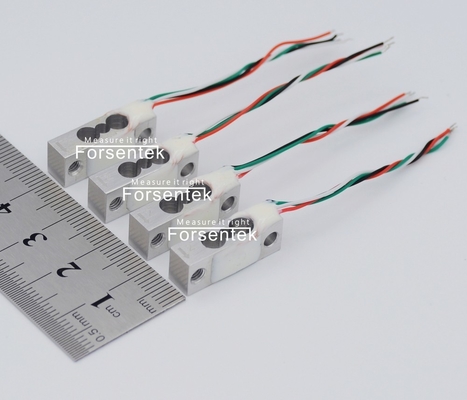

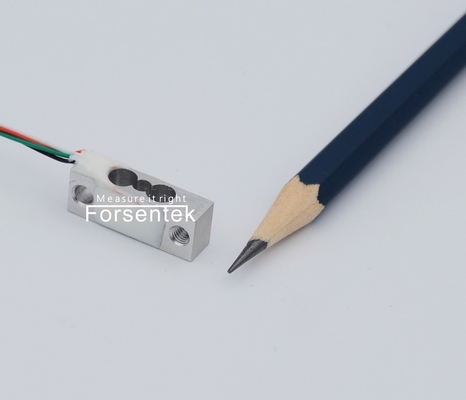

Micro Load Sensor FMZC is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Small load cell sensor FMZC offers 2kg / 3kg / 5kg / 10kg four rated capacities to choose from,high accuracy with maximum 0.1% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to commonly used 350 ohms gauges. The compact size (L*W*H=22*8*5mm) and aluminum material makes FMZC weighs only about 2.2 grams which makes it suitable for weight measuring applications where total mass and mounting space matters. Micro Weight Sensor FMZC offers a perfect mixture of small size,high accuracy and low cost,which makes weight sensor FMZC suitable for weight monitoring in consumer electronics.You may find weight transducer FMZC applicable for home appliances, force simulators, process control, robotics, automotive and so on.Forsentek is also capable of and willing to provide custom made service if you cannot find suitable weight/load/force measurement sensors from the standard product portfolio.
Loadcell output = (Power supply * Rated output) * Load / Capacity
Rated output of beam type weight sensor FMZC is around 1.0mV/V.
Power supply of micro weight transducer FMZC is normally within 3-10V.
Load / Capacity is within 0-1.
So the output range of small load cell transducer FMZC is normally within -10mV...+10mV.
Example one: Micro Single Point Load cell FMZC-5kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is -3.3mV...+3.3mV.
Example two: Miniature Single Point Load cell FMZC-10kg with 1.0mV/V sensitivity powered by 5V DC,the output range is -5mV...+5mV.
Specifications
| Rated capacity |
2kg / 20N / 4.4lbf 3kg / 30N / 6.6lbf 5kg / 50N / 11lbf 10kg / 100N / 22lb |
| Rated output | 1.0 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of R.O. |
| Hysteresis | ±0.1% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(2min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.05% of R.O./oC |
| Temperature shift span | ±0.05% of R.O./oC |
| Input resistance | 1020±100 ohms |
| Output resistance | 1020±20 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | 32AWG*180mm(Longer cable available) |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

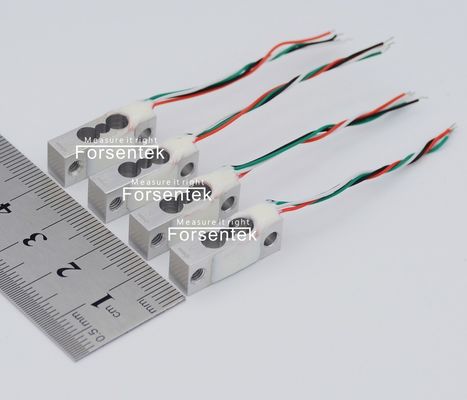

2kg 3kg 5kg 10kg Miniature load cell sensor FMZC
Dimensions(unit in milimeter)
