| Usage: | 3-axis Force Measurement | Channel: | Fx/Fy/Fz |
|---|---|---|---|
| Output: | Analog | Force Range: | 5/10/20 Ton |
| Type: | Triaxial Force Sensor |

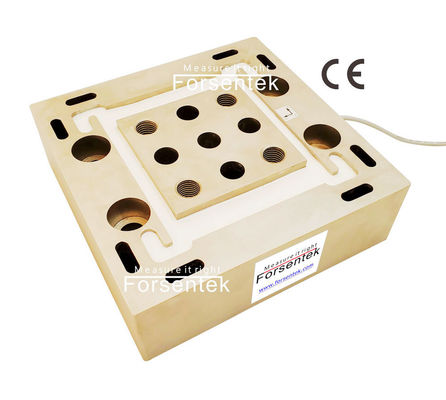

High Range Multi Axis Load Cell 20 ton 10ton 5 ton 3-Axis Loadcell Sensor
High Capacity 3-Axis Load Cell F3K is made of alloy steel based on strain gauge technology intended for 3-axis force measurement in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction. High Range Multi Axis Force Sensor F3K offers 0-5ton / 0-10 ton / 0-20ton (0-50kN / 0-100kN / 0-200kN) three measuring ranges to choose from.Typical applications for 3D Load Cell F3K are for example industrial test benches, force exertion control in robotics, automotive crash testing, grinding force control, actuator operating force measurement and so on.Custom made service is available for tri-axial load cells with different dimensions and measuring ranges at Forsentek.
Specifications
| Rated Capacity |
50kN / 5 ton / 11.2klb 100kN / 10 ton / 22.5klb 200kN / 20 ton / 45klb |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Alloy steel |
| Cable | Ø6*3000mm 12-pin shielded |
| Wiring code |
4-wire connection for each axis |
