| Usage: | Measure Motor Torque,shaft Torque Measurement | Theory: | Roraty Torque Transformer |
|---|---|---|---|
| Output: | 5kHz~15kHz | Torque Measurement Direction: | Clockwise&Counterclockwise |
| Capacity: | 5NM~100000NM |
Features
Specifications
| Capacity | 5NM 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM 700NM 1kNM 2kNM 3kNM 5kNM 7kNM 10kNM 20kNM 30kNM 40kNM 50kNM 100kNM |
| Rated output | TTL square wave@5V Torque: 5kHz~15kHz Speed: 60 pulses/Rev. |
| Excitation | ±15V DC |
| Zero balance | 10kHz |
| Non-linearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Non-repeatability | ±0.2% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø6*5000mm |

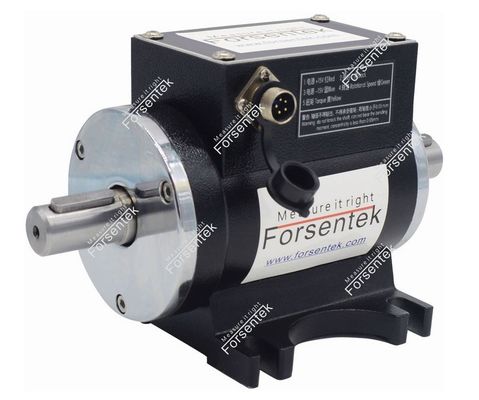

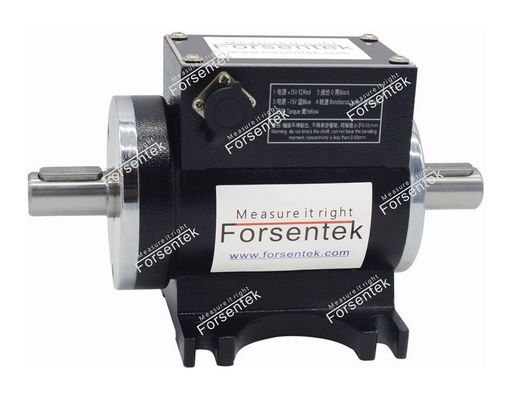

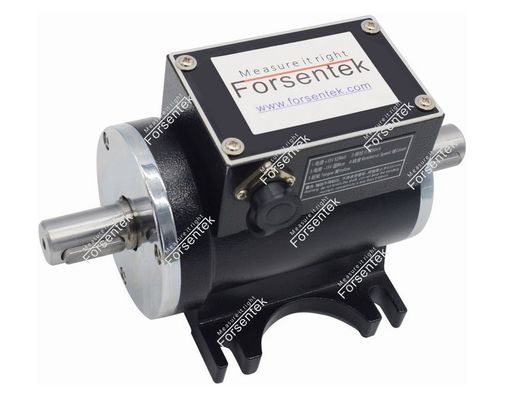

Non-contact rotary torque transducer rotating torque measurement sensor
Contactless rotary torque sensor FYN is produced based on rotary torque transformer technology,torque signal is trasmitted from rotating shaft contactlessly.
Non-contact torque transducer is much more durable due to there is no brush abrasion issueS compared to slip-ring type torque sensor.
Dual-direction torque measurement is available and speed measurment is integrated.
Analog output -5~5V/0-5V/4-20mA can be achieved through signal converter.Wide torque measuring range from 5NM to 100000NM makes it applicable for most motor torque measurement applications.
