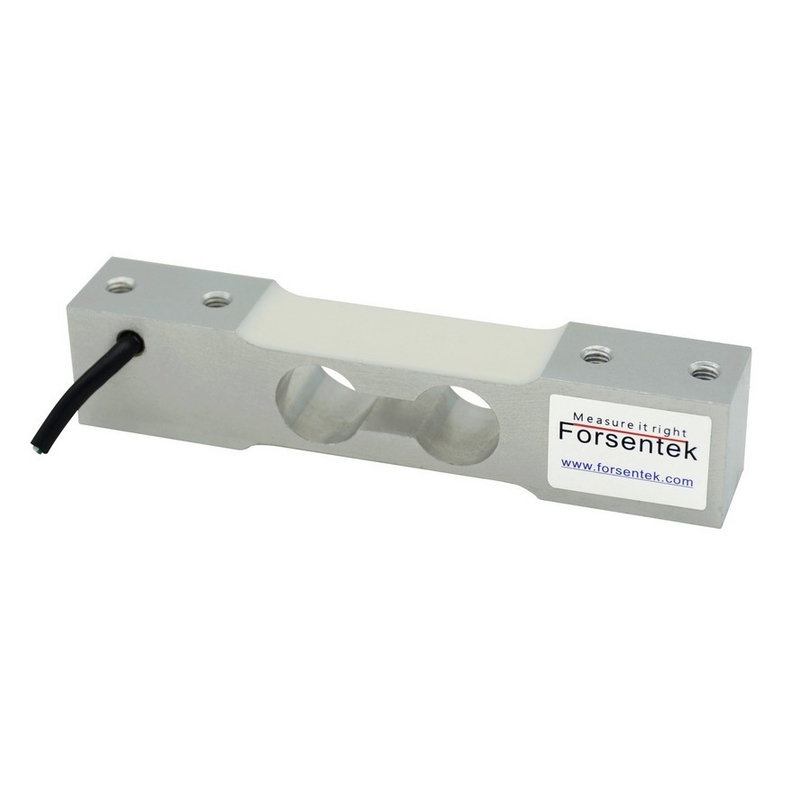

Weight sensor 50N load cell 5kg

Weight sensor 50N load cell 5kg

Weight sensor 50N load cell 5kg
Weight sensor 50N load cell 5kg Weight sensor 50N load cell 5kg

Large Image :  Weight sensor 50N load cell 5kg Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FNK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Capacity: 3kg 5kg 10kg 15kg 20kg

Weight sensor 50N load cell 5kg

load cell 5kg



Features:

  • Aluminum construction,small size
  • Strain gauge technology,high accuracy
  • Corner trimmed for 200*200(mm) platform
  • Widely used for price computing scales,counting scales,bench scales.etc.

Dimensions

weight sensor 3kg 5kg 10kg 20kg

Specifications

Capacity 3kg 5kg 10kg 15kg 20kg
Rated output 2.0±10%mV/V
Excitation 5-15V
Zero balance ±5% R.O.
Nonlinearity ±0.02% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.015 R.O.
Creep(30min) ±0.03 R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 1130±30 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*400mm(Longer cable available)
Wiring code Red--E+ Black--E- Green--S+ White--S-

Load cell 5kg 10kg 20kg

weight transducer 5kg
