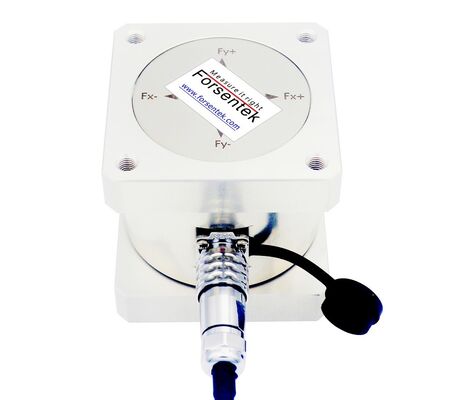

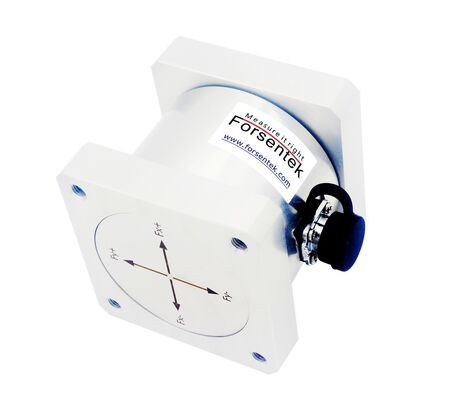

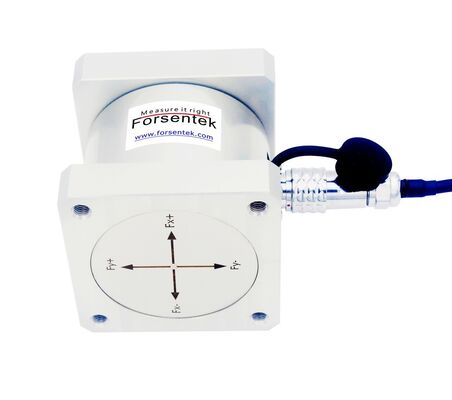

Flange-to-Flange Multi-Axis Load Cell 0-11kN Triaxial Force Sensor
The F3Y is a compact force measurement solution engineered for simultaneous load detection along three perpendicular axes in a single sensor body. Designed as a high-performance multi-axis force sensor and precision 3-axis load cell, it captures Fx, Fy, and Fz at the same time, giving engineers a complete view of force behavior without the complexity of installing several separate sensors. Its rigid flange-to-flange construction provides strong structural integrity, dependable mounting, and stable output in test systems where installation space is limited. To support a wide range of medium-capacity applications, the F3Y is available in Fx-Fy-Fz rated capacities of 0.5kN-0.5kN-1.5kN, 1kN-1kN-3kN, 2kN-2kN-5kN, 3kN-3kN-8kN, and 4kN-4kN-11kN. This makes it an excellent fit for laboratory testing, product development, and industrial force monitoring tasks that require accurate multi-directional measurement.
Developed for advanced analysis in demanding environments, the F3Y also functions as a reliable triaxial force sensor and high-accuracy 3d load cell for applications involving complex load evaluation. It is widely used in robotics, aerospace testing, wind tunnel research, structural verification, and dynamometer-based systems where repeatable and precise force data is critical. Every unit is individually calibrated and delivered with a calibration certificate to ensure measurement consistency. The F3Y can also serve as a replacement for the Futek MTA400, offering a practical alternative for compatible force measurement setups. For projects with unique technical requirements, custom capacities, dimensional changes, and structural modifications are available to support smooth integration into specialized systems.
Specifications
| Rated Capacity |
Fx-Fy-Fz 0.5kN-0.5kN-1.5kN |
| Sensitivity |
Fx/Fy: 1.8±0.2 mV/V Fz: 1.0±0.2 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(3min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.02% R.O./oC |
| Temperature shift on span | ±0.03% R.O./oC |
| Input resistance |
158±10 ohms |
| Output resistance |
Fx/Fy: 380±30 ohms Fz: 1400±50 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element |
Aluminum or Stainless steel |
| Cable |
Ø5*3000mm 8-pin shielded cable |
| Wiring code |
Power: Red---Power+ Black---Power- Fx: Brown---Sig+ Yellow---Sig- Fy: Blue---Sig+ Purple---Sig- Fz: Green---Sig+ White---Sig- |
