| Usage: | Force Measurement | Structure: | S Type Load Cell |
|---|---|---|---|
| Capacity: | 5/10/20/30/50KG | Force Direction: | Tension And Compression |
| Connection: | M6 Tapped Hole | Output: | Analog Sensor |

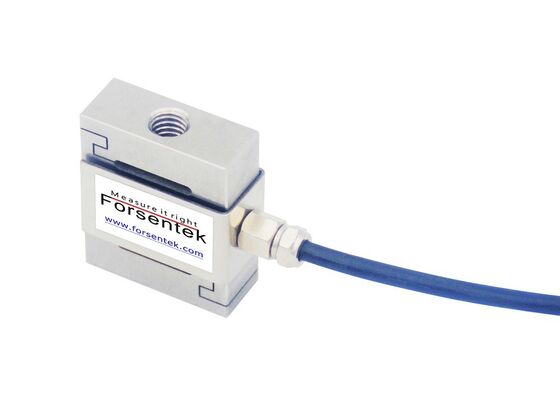

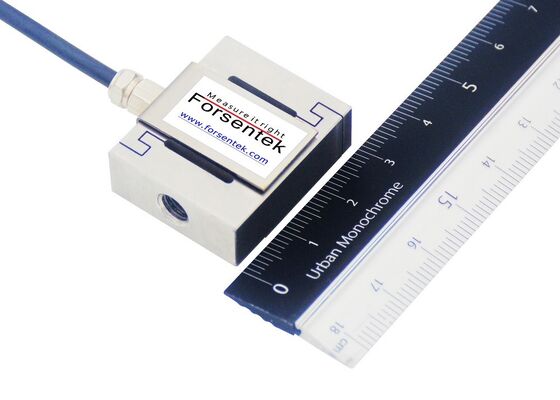

M6 Threaded Miniature S-beam Load Cell 50kg 30kg 20kg 10kg 5kg
The FSKT miniature S type load cell is a compact and reliable device engineered for precise tension and compression measurements. Made from high-quality stainless steel, this small S-beam force sensor combines excellent mechanical strength with long-term stability and corrosion resistance, ensuring consistent performance in both industrial and laboratory environments. Available in rated capacities of 5kg, 10kg, 20kg, 30kg, and 50kg, the sensor is ideal for low-force measurement tasks requiring high accuracy and repeatability. Its compact size allows seamless integration into equipment with limited installation space while maintaining dependable measurement precision, making it a versatile tool for a wide range of force detection applications.
This force sensing load cell is equipped with M6 threaded holes on both ends, allowing for easy mounting with hooks, eye bolts, or load buttons, and enabling rapid adaptation to various test setups and automated systems. Typical applications include connector insertion and extraction testing, friction measurement systems, spring testing machines, assembly line force monitoring, wire tension control, cylinder push-pull force measurement, and educational or research-based force measurement projects. For specialized requirements, the sensor can be customized to meet unique mechanical or performance specifications. With its compact design, flexible installation options, and precise measurement capabilities, this force detection sensor provides an effective and practical solution for OEM equipment manufacturers and research applications requiring reliable, high-accuracy force measurement.
Dimensions(unit in "mm")
| Capacity |
5/10/20/30/50kg 50/100/200/300/500N |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of full capacity |
| Hysteresis | ±0.1% of full capacity |
| Nonrepeatability | ±0.05% of full capacity |
| Creep(3min) | ±0.1% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø3*2000mm 4-core shielded |
| Wiring code |
Tension@ Green--Signal+ White--Signal- |
50kg 30kg 20kg 10kg 5kg Miniature S-beam Load Cell With M6 Tapped Holes
