Mini Tension And Compression Load Cell 200g 500g Micro Force Sensor 2N 5N

Miniature Tension And Compression Load Cell 200g 500g Micro Force Sensor 2N 5N

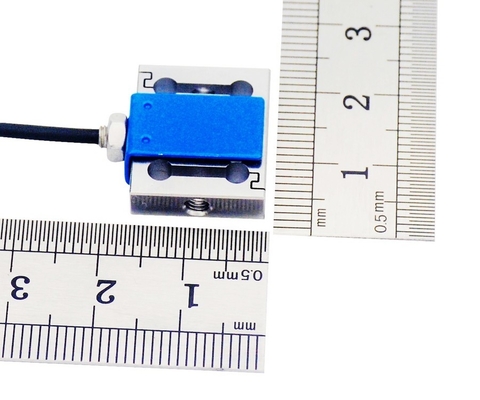

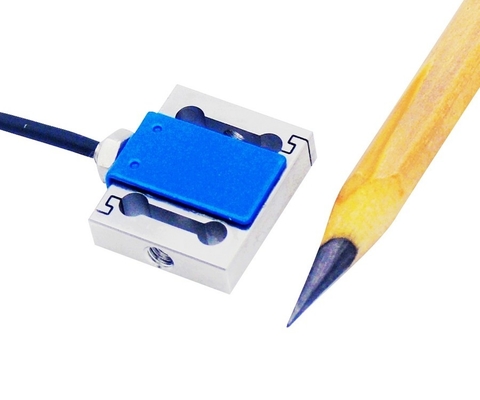

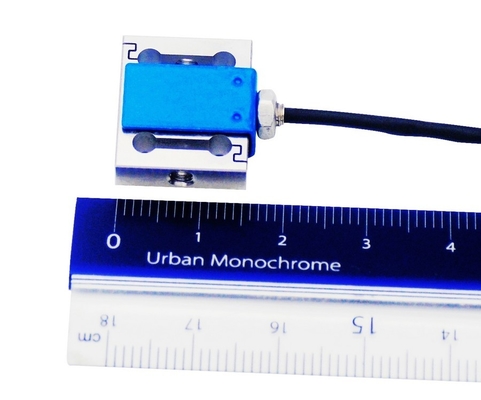

The FSMY-200g/500g miniature compression and tension load cell is a cutting-edge device engineered to address the needs of precise force measurement across various industries. Designed with M3 tapped holes on both sides of the transducer, this load cell enables easy mounting of accessories such as threaded rods, eye bolts, load buttons, or hooks, ensuring adaptability for diverse applications. Its robust stainless steel construction not only enhances durability but also makes it ideal for measuring both push and pull forces, providing reliable bidirectional force measurement. This versatility allows the FSMY-200g/500g to excel in environments where accuracy and flexibility are paramount, making it a preferred choice for professionals in fields ranging from manufacturing to research and development.

At the core of mini force transducer FSMY-200g/500g’s exceptional performance is advanced strain gauge technology, which guarantees high precision and consistency. With a resolution of 0.05g/0.1g and a maximum non-linearity of just 0.1% of the full scale, this load cell delivers accurate and repeatable results, even in the most demanding scenarios. To ensure top-tier quality, each unit undergoes rigorous testing and inspection before leaving the factory. This meticulous process ensures that customers receive a product that meets the highest standards of reliability and performance. Whether used in laboratory settings or industrial applications, the FSMY-200g/500g is built to provide dependable force measurement solutions.

The compact and lightweight design of the FSMY-200g/500g makes it particularly well-suited for applications where space constraints and precision are critical. It is widely used in fields such as spring testing, robotics, medical devices, textile manufacturing, and precision assembly. Its small size and high accuracy make it an excellent choice for integration into systems requiring precise force feedback and measurement. Combining versatility, durability, and exceptional performance, the FSMY-200g/500g load cell stands out as a premium solution for professionals seeking reliable force measurement capabilities in a compact form factor. Whether in industrial, research, or development settings, this load cell is designed to deliver consistent and dependable results, ensuring optimal performance in every application.

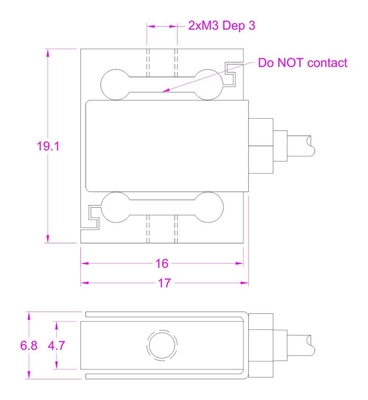

Dimensions(unit in "mm")

A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Jr s-beam load cell FSMY-500g is around 2.0mV/V.
Power supply of S type force sensor FSMY-500g is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of S beam force transducer FSMY-500g is normally within -24mV...+24mV for tension and compression force measurement.

A load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSMY-500g and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-500g compression load VS 0-5V output, 0-500g tension load VS 0-(-5V) output,which is linear regardless of the measurement error.
