Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement

Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement

Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement
Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement

Large Image :  Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FCMU
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 928pcs/month
Detailed Product Description
Usage: Force Measurement Measure Direction: Tension And Compression
Type: Pancake Load Cell Force Range: 50kg 100kg 200kg 500kg 1t 2t
Material: Stainless Steel Connection: M16 Tapped Hole
Output: Analog Load Cell

Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement

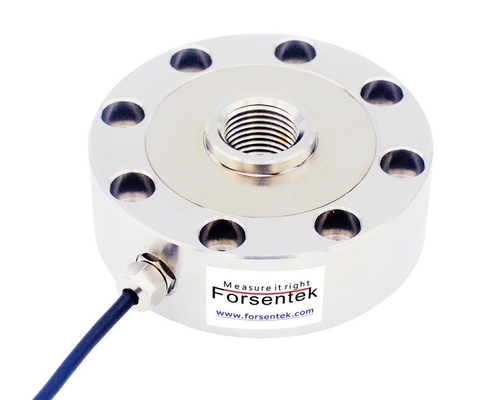

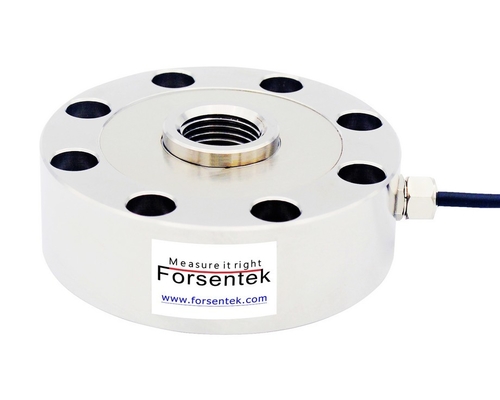

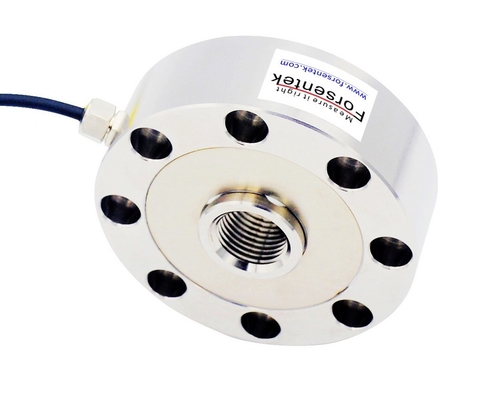

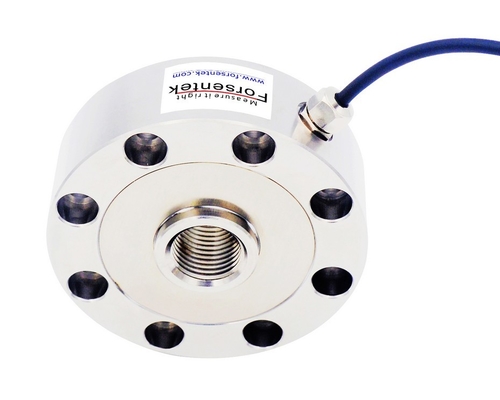

Pancake Load Cell FCMU is made from stainless steel based on strain gauge technology intended for both tension and compression force measurement. Pancake Load Cell FCMU offers 0-50kg / 0-100kg / 0-200kg / 0-500kg / 0-1000kg / 0-2000kg six rated measuring ranges. The low profile load cell FCMU incorporates an M16x1.5 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to fit different applications. Stainless steel load cell FCMU is applicable for both static and dynamic force measurement. You may find pancake load cell FCMu suitable for force measurement in injection-molding machines, press machines and material testing equipment and so on. Model FCMU can also be modified or customzied as per requirements of our clients.

low profile pancake load cell

Specifications

Capacity

50kg / 500N / 110lb

100kg / 1kN / 220lb

200kg / 2kN / 450lb

500kg / 5kN / 1.1klbs

1000kg / 10kN / 2.2klb

2000kg / 20kN / 4.5klb

Rated output 2.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 750±100 ohms
Output resistance 700±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø4*3000mm 4-core shielded cable
Wiring code

Red--Excitation+  Black--Excitation-
Green--Signal+  White--Signal-



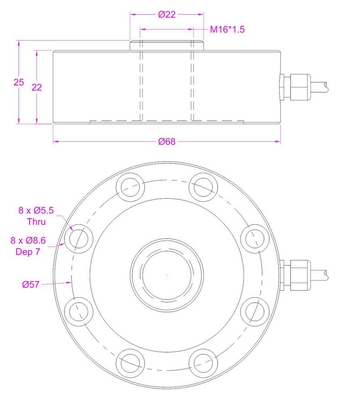

Stainless Steel Pancake Load Cell 0-2ton For Tension Compression Force Measurement
stainless steel pancake load cell
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of stainless steel pancake load cell FCMU is normally around 2.0mV/V.
Power supply of shear web load cell FCMU is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of spoke type load cell FCMU is normaly within -30mV...+30mV.
Example: Pancake Load Cell FCMU-1000kg with 2.0mV/V power by 10V DC,the output range is -20mV...+205mV proportional to the applied load.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression Load Cell FCMU-500kg working with 0-10V amplifier,the load-output relationship will be 0-500kg compressive load VS 0-10V output,0V output corresponds to 0kg, 1V output corresponds to 50kgf compression load, 5V output corresponds to 250kgf load, and so on.

Stainless Steel Pancake Load Cell 0-2000kg For Tension Compression Force Measurement

stainless steel load cell

Click here to download datasheet
