| Usage: | Two-dimensional Force Measurement | Type: | 2-axis Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 20kg 50kg 100kg 200kg |
| Channel: | Fx/Fy | Connection: | M18 Threaded Rod |
| Principle: | Strain Gauge Sensor |

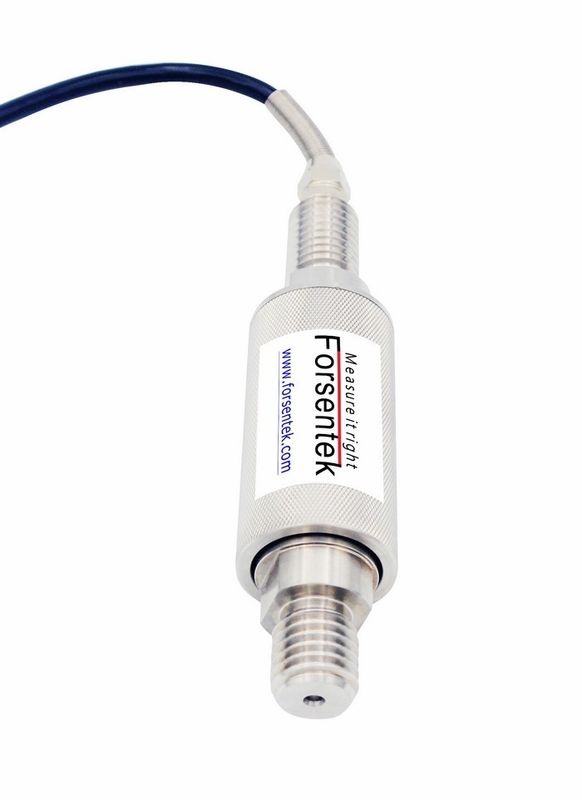

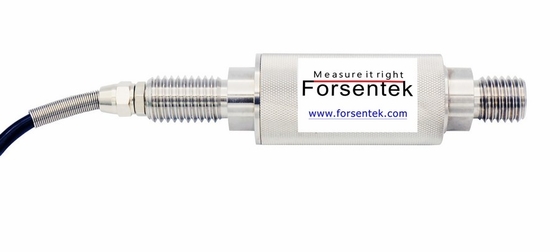

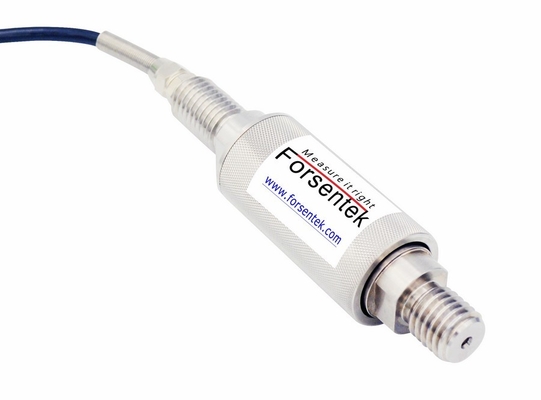

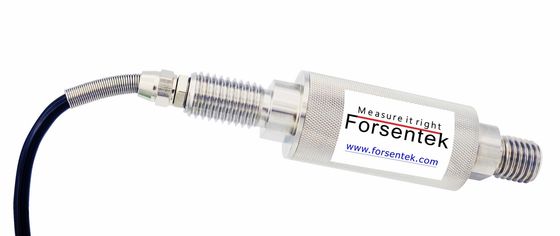

Biaxial Load Cell 20kg 50kg 100kg 200kg Two-axis Force Sensor
Biaxial load cell F2H is made from stainless steel based on strain gauge technology offering 200N / 500N / 1000N / 2000N four rated capacities for Fx/Fy two-dimensional force measurement. Both axes support tension and compression force measurement. 2-axis force sensor F2H can work with our 2-channel load cell amplifier LC2A to deliver 0-5V / 0-10V / 4-20mA output that is proportional to the force applied. 2-axis load cell is typically used for force measurement and control in actuators, force simulators, operating levers. Model F2H can be modified or customized upon request to suit different applications.
Dimensions
Ordering code
| Part No. | Capacity |
| Fx=Fy | |
| F2H-20kg |
20kgf |
| F2H-50kg | 50kgf |
| F2H-100kg | 100kgf |
| F2H-200kg | 200kgf |
Specifications
| Rated Capacity |
20kg 50kg 100kg 200kg (200N 500N 1000N 2000N) |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 180±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø5.8*2000mm 6-core shielded cable |
| Wiring code |
Fx @ Red--E+ Black--E- Green--S+ White--S- Fy @ Red--E+ Black--E- Yellow--S+ Blue--S- |
