Product Details:
Payment & Shipping Terms:
|
| Usage: | Force Measurement | Load Direction: | Traction And Compression |
|---|---|---|---|
| Structure: | Flange-to-Flange | Capacity: | 5kg 10kg 20kg 30kg 50kg |
| Output: | Analog Transducer | Material: | Stainless Steel |
| Resistance: | 1000 Ohms |

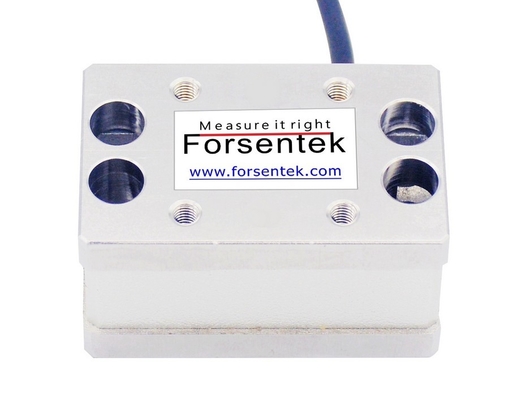

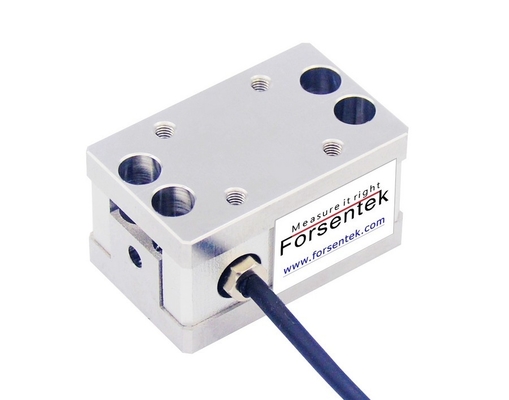

0-50kg Tension And Compression Load Cell With Flanged Mounting Surface
Flange Type Tension Compression Load Cell FXFA is made from stainless steel based on proven strain gauge technology, it offers 5kgf / 10kgf / 20kgf / 30kgf / 50kgf five rated capacities intended for both traction and compression force measurement. The flanged surface enables it to be easily mounted between two assemblies. Force sensor FXFA consists of a wheatstone bridge with 1000 ohms resistance, customers can benefit from high resistance for better stability and lower power consumption. 0-5V, 0-10V and 4-20mA is available through external amplifier. You may find force transducer FXFA applicable for assembly press-in force measurement, tension control, thrust measurement. Custom made service is available if the current specifications do not meet your requirements.
A force sensor is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell. Flange Mounted Load Cell FXFA is designed to measure force in both tension and compression direction,outputs millivolt signal ranging -15mV...+15mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5-5V, 0-10V or 4-20mA signal proportional to applied force. The amplified output then can be easily processed by PLCs and data acquisition software.The force can be displayed through force indicator, force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC, sampling speed up to 960Hz makes it suitable for both static and dynamic measurement; FPT also supports Modbus RTU protocol with RS485 or RS232 communication port, amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
Specifications
| Capacity |
50N / 5kg / 11lb |
| Rated output | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% of capacity |
| Hysteresis | ±0.2% of capacity |
| Nonrepeatability | ±0.1% of capacity |
| Creep(5min) | ±0.05% of capacity |
| Safe overload | 150% of capacity |
| Ultimate overload | 200% of capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded cable |
| Wiring code |
Compression@ Green--Signal output+ White--Signal output- |

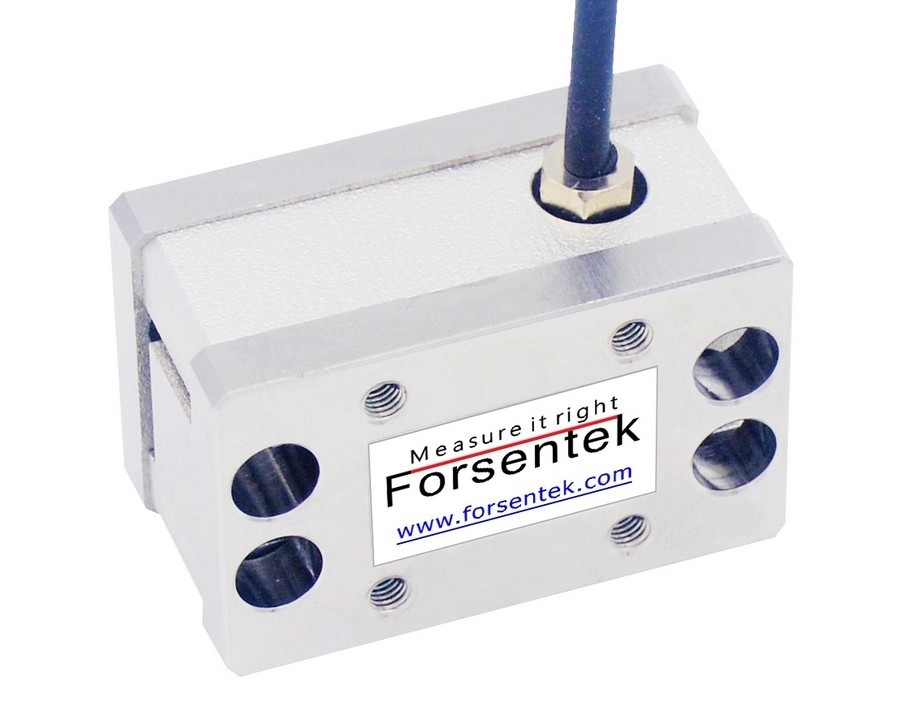

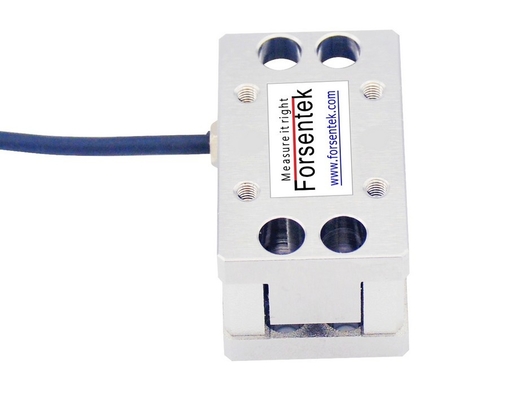

0-50kg Tension And Compression Load Cell With Flanged Mounting Surface
Instruction of load cell output:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Compression/Tension Load Cell FXFA is around 1.0mV/V.
Power supply of Miniature Push Pull Force Sensor FXFA is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Force Sensor FXFA is normally within -15mV...+15mV for tension/compression force measurement.
Example: Tension Compression Load Cell FXFA-5kg with 1.0mV/V sensitivity powered by 5V DC,the output range is -5mV...+5mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Tension Compression Sensor FXFA-20kg working with -10-10V amplifier,the Force-Voltage relationship will be 0-20kgf compression load VS 0-10V output,0-20kgf tension load VS 0-(-10V) output,when you get 5V output,it means the current load is 10kgf compression force,when you get -1V output,it means the current load is 2kgf tension force,and so on.

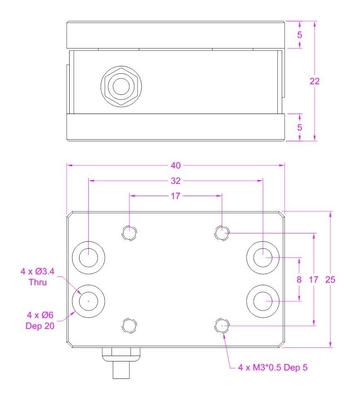

0-50kg Tension And Compression Load Cell With Flanged Mounting Surface
