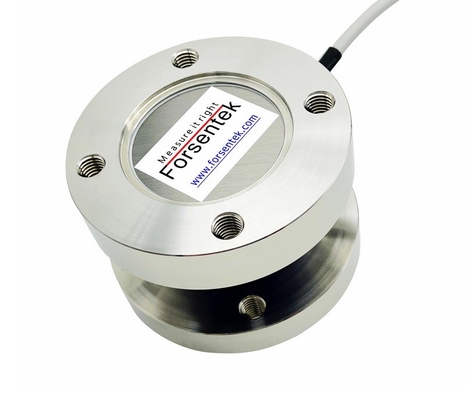

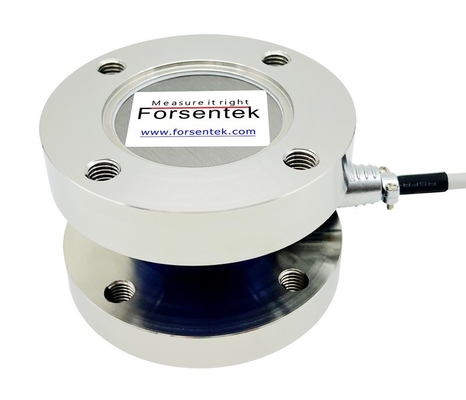

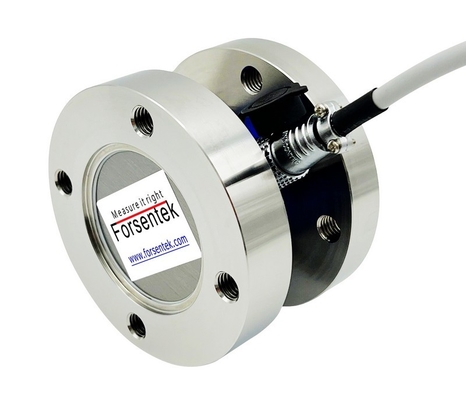

2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer

2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer

2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer
2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer 2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer 2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer

Large Image :  2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FT2E
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 4 weeks
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1965pcs/month
Detailed Product Description
Type: Torque And Thrust Force Load Cell Usage: Force Torque Measurement
Output: Analog Sensor Connection: Flange To Flange
Torque Range: 10Nm 20Nm 30N-m 50N*m 100Nm Force Range: 1kN 2kN 3kN 5kN 10kN

2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer

The FT2E Torque and Thrust Bi-axial Load Cell is designed to measure reaction torque as well as thrust force at the same time, torque measurement supports both clockwise and counterclockwise direction, force measurement supports both tension and compression load.Two wheatstone full bridges deliver seperate outputs for applied torque and thrust force, 0-5V / 0-10V / 4-20mA output is available through external 2-channel load cell signal amplifier. Thrust torque sensor FT2E used throughout industry for product testing, robotic assembly, grinding and polishing.Besides the standard measuring ranges and dimensions,biaxial load cell FT2E can also be modified or customized upon request.

2-axis force sensor

Dimensions

2-axis load cell

Ordering code Torque capacity Force capacity
FT2E-A 10Nm 1kN
FT2E-B 20Nm 2kN
FT2E-C 30Nm 3kN
FT2E-D 50Nm 5kN
FT2E-E 100Nm 10kN

torque and thrust load cell

Specifications

Torque capacity 10Nm 20Nm 30N*m 50Nm 100Nm
Force capacity 1kN 2kN 3kN 5kN 10kN
Rated output >0.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.2% R.O.
Creep(3min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. 0...+40oC
Operating temp. -10...+60oC
Temp. shift zero ±0.03% R.O./oC
Temp. shift span ±0.03% R.O./oC
Input resistance 380/700 ohms
Output resistance 350/700 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø6*3000mm 8-core shielded cable
Wiring code

Torque:Brown--E+ Orange--E- Blue--S+ Gray--S-

Thrust:Red--E+ Black--E- Green--S+ Purple--S-



2-axis Torque and Thrust Sensor 1kN 10Nm Biaxial Load Cell Transducer

force torque sensor

Click here to download datasheet
