| Type: | Compression Traction Load Cell | Capacity: | 1kg 2kg 5kg 10kg 20kg |
|---|---|---|---|
| Structure: | Smallest S-beam Load Cell | Usage: | Force Measurement |
| Force Measurement Direction: | Traction And Compression | Output: | Analog Force Sensor |
| Threaded Hole: | M2 |
Smallest Traction Compression Load Cell 1kg Compression And Traction Load Cell 2kg

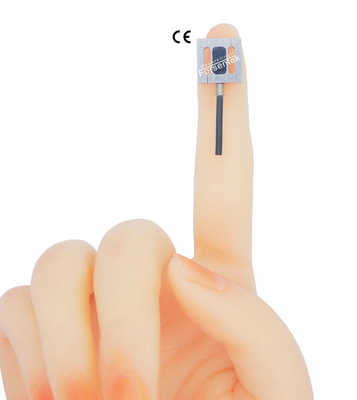

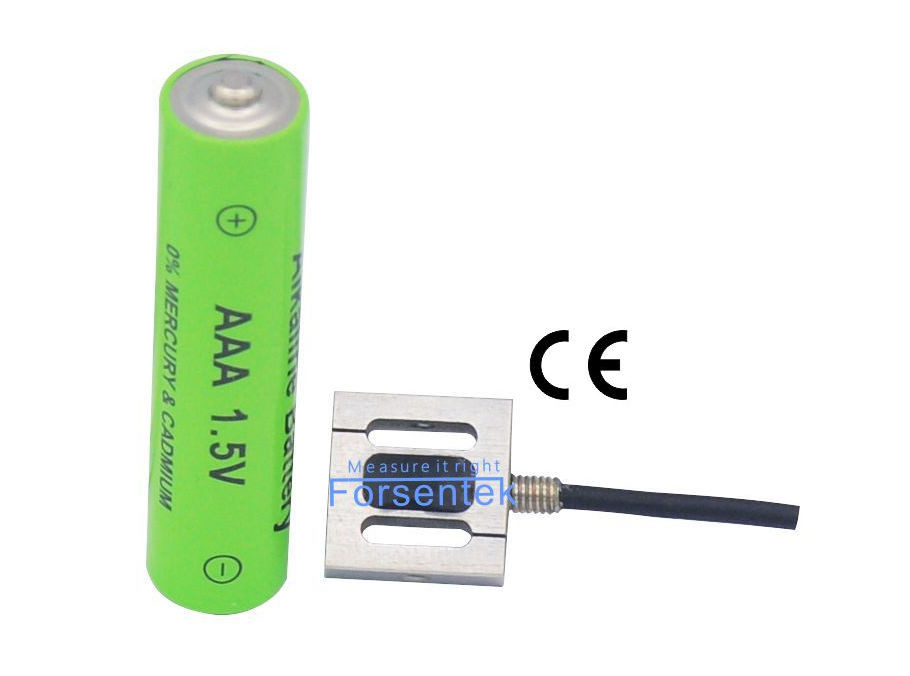

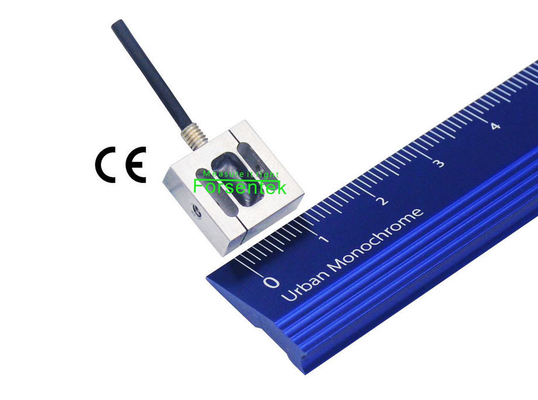

Smallest Traction Load Cell FSSQ offers a compact design for a variety of applications. the S Beam Traction Compression Load Cell series provides accuracy, compact design features, and 5 capacity ranges 1kg / 2kg / 5kg / 10kg / 20kg to choose from.The jr s-beam Traction Force Sensor FSSQ utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity,the compact design enables the FSSQ to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The Micro Traction Force Load Cell FSSQ features M2 threaded holes on two sides for the mounting of attachments or implements for both tension and compression force measurement in applications with limited space.
Wheatstone Bridge:A Wheatstone bridge is a network of four resistive legs. One or more of these legs can be active sensing elements. The Wheatstone bridge is the electrical equivalent of two parallel voltage divider circuits. R1 and R2 compose one voltage divider circuit, and R4 and R3 compose the second voltage divider circuit. The output of a Wheatstone bridge is measured between the middle nodes of the two voltage dividers.
Rated Capacity: The maximum axial load the load cell is designed to measure within its specifications.
Non-linearity: The maximum deviation of the calibration curve from a straight line drawn between the no-load and rated outputs; expressed as a percentage of the rated output and measured on increasing load only.
Non-repeatability: The maximum difference between load cell output readings for repeated loadings under identical loading and environmental conditions.
Miniature Compression And Traction Load Cell FSSQ outputs mV signal from the full wheatstone bridge which is proportional to the applied load,normally within -25mV...+25mV. A load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSSQ-50N and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-50N compression load VS 0-5V output, 0-50N traction load VS 0-(-5V) output,which is linear regardless of the measurement error.
Ordering code: FSSQ-10N, FSSQ-20N, FSSQ-50N, FSSQ-100N, FSSQ-200N
Specifications
| Capacity |
10N / 20N / 50N / 100N / 200N |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% of rated capacity |
| Hysteresis | ±0.2% of rated capacity |
| Nonrepeatability | ±0.1% of rated capacity |
| Creep(5min) | ±0.1% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 200% of rated capacity. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
