Detailed Product Description
Type: Compression Traction Load Cell Capacity: 200kg 100kg 50kg
Usage: Force Measurement Load Direction: Traction And Compression
Output: Analog Force Sensor Connection: M8 Threaded Hole

50kg Traction Load Cell 100kg Compression And Traction Load Cell 200kg

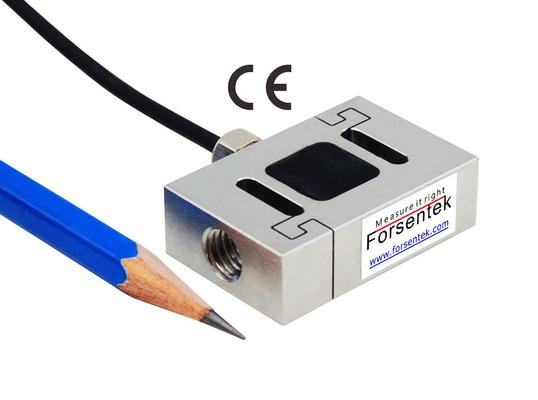

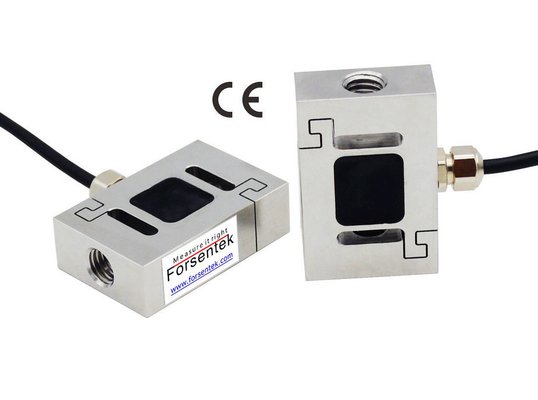

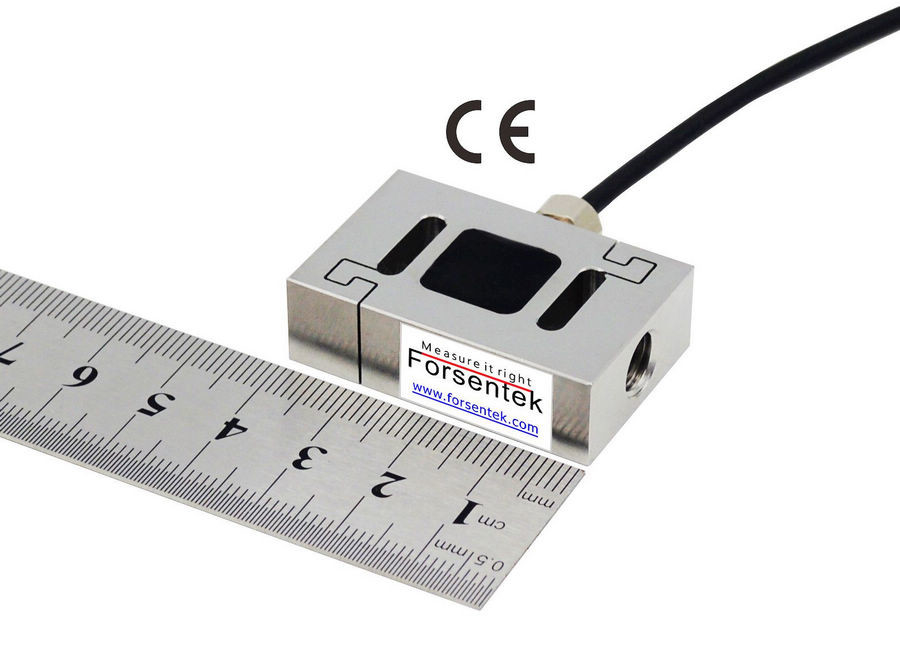

M8 Threaded Compression And Traction Load Cell FSSG offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features.The miniature s-beam traction force load cell FSSG utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity of the rated output,the compact design enables the traction force sensor FSSG to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment. The sensor features M8 threaded holes on two sides for the mounting of attachments or implements, this micro force sensor can be used for both tension and compression force measurement in applications with limited space. Small size traction compression load cell FSSG is widely used for force gauges, tension meters, switch insertion force measurement, keyboard testing, spring testing, syringe testing, touchpad testing, cylinder thrust measurement and so on. S type load cell FSSG offers 0-50kg / 0-100kg / 0-200kg three different measuring ranges to choose from, besides the standard specifications, model FSSG can also be modified or customized according to clients' requirements.

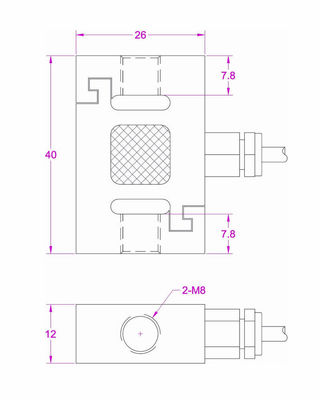

Traction_Load_Cell_50kgTraction_Load_Cell_2KN

A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the mV/V output signal from the wheatstone bridge of the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of traction compression force transducer FSSG is normally around 2.0mV/V.
Power supply of push pull load cell FSSG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of compression and traction force sensor FSSG is normally within -30mV...+30mV for push and pull force measurement.
Example Miniature S type traction load cell FSSG-1kN with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example: FSSG-2kN working with -10-10 amplifier,the Force-Voltage relationship will be 0-2000N compression load VS 0-10V output, 0-2000N traction force VS 0-(-10V) output,when you get 5V output,it means the current load is 1000N compression force,when you get -3V output,it means the current load is 600N tension force,and so on.

Traction_Load_Cell_100kgTraction_Load_Cell_200kg

Ordering code:FSSG-500N,    FSSG-1kN,    FSSG-2kN

Specifications

Capacity

500N / 1000N / 2000N
50kg / 100kg / 200kg
110lb / 220lbs / 450lbf

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% of R.O.
Hysteresis ±0.2% of R.O.
Nonrepeatability ±0.1% of R.O.
Creep(5min) ±0.05% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 380±30 ohms
Output resistance 355±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø3*4000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+  Black--Excitation-

Green--Signal+  White--Signal-
