Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell

Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell

Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell
Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell

Large Image :  Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FLAE
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2450pcs/month
Detailed Product Description
Type: Miniature Column Load Cell Load Direction: Tension And Compression
Capacity: 1kg 2kg 5kg 10kg 20kg Output: Analog Sensor

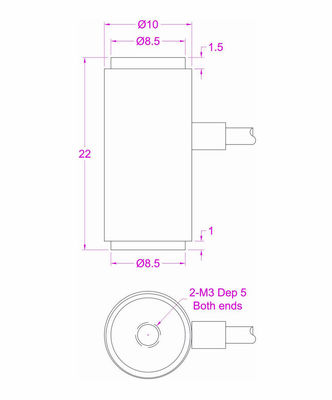

Mounting: M3 Threaded Hole

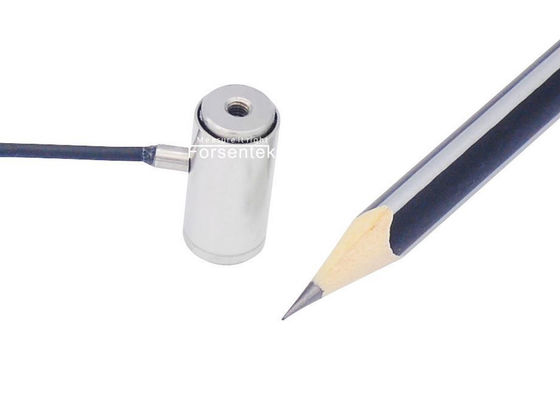

Miniature Tension Compression Load Cell Micro Column Force Sensor

Miniature Force Transducer FLAE is made of stainless steel utilizing strain gauge technology to deliver maximum 0.2% non-linearity of rated output. Micro Cylindrical Load Cell FLAE offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg five rated capacities to choose from. M3 threaded holes located on two sides of the transducer can be used to mount attachments or implements to adapt to different force measurement cases, miniature column type load cell FLAE can be used for both tension and compression force measurement. Stainless steel construction, compact size, bidirectional force measurement, high accuracy, Micro Force Load Cell FLAE offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control and so on. In addition to the standard specifications, Forsentek is also capable of providing custom design service to meet requirements of different applications.

2kg Miniature tension compression load cell 1kg20N Miniature cylindrical force sensor 10N

Ordering code Measurement Range Force direction
FLAE-10N 0-10N / 0-1kgf

Tension and compression

FLAE-20N 0-20N / 0-2kgf
FLAE-50N 0-50N / 0-5kgf
FLAE-100N 0-100N / 0-10kgf
FLAE-200N 0-200N / 0-20kgf

Specifications

Capacity

10N / 1kg / 2lb
20N / 2kg / 4lb
50N / 5kg / 11lb
100N / 10kg / 22 lb
200N / 20kg / 45 lb

Rated output 2.0 mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.2% of the capacity
Hysteresis ±0.2% of the capacity
Nonrepeatability ±0.1% of the capacity
Creep(5min) ±0.1% of the capacity
Safe overload 150% of the capacity
Ultimate overload 200% of the capacity
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 352±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Red--Excitation+    Black--Excitation-

Green--Signal+    White--Signal-



A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of miniature cylindrical load cell FLAE is around 2.0mV/V.
Power supply of micro column force sensor FLAE is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of miniature force transducer FLAE is normally within -24mV...+24mV for tension/compression force measurement.
Example one:Miniature tension/compression load cell FLAE-10N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
Example two: Micro tension and compression force sensor FLAE-20N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.

Miniature_compression_load_cell_4-20mA

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example one: Miniature tension compression load cell FLAE-100N working with -10-10V amplifier,the Force-Voltage relationship will be 0-100N compression load VS 0-10V output,0-100N traction load VS 0-(-10V) output, which is linear regardless of the measurement error. When you get 5V output, it means the current load is 50N compression force, when you get -1V output, it means the current load is 10N tensile force,and so on.
Example two: Miniature tension compression load cell FLAE-1kg working with 4-12-20mA amplifier,the Force-Current relationship will be 0-1kg compression force VS 12-20mA output, 0-1kg traction force VS 12-4mA output, which is linear regardless of the measurement error. Namely 12mA output corresponds to “0” load, 12.8mA output corresponds to 0.1kgf compressive load, 8mA output corresponds to 0.5kgf tensile load, and so on.

Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg Micro Column Load Cell

10kg Miniature tension compression load cell 5kg

Click here to download datasheet
